Thomas & Betts F9039 1/0 AWG 50 mm.. Non-Insulated Ferrule

Manufacturer: Thomas & Betts | Catalog # F9039 | North Coast Part # 1005137
$978.68/c (100 ea)
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page
Non-Insulated Ferrule, Length 1.18 Inches/30mm, Inner Diameter .406 Inches/10.3mm, Outer Diameter .512 Inches/13mm, Conductor Size 1/0 AWG/50mm2, Copper, Tin Plated

Technical Information

Conductor Size
1/0 AWG
Contact Material
Copper
Insulation Type
Non-Insulated
Material
Copper
Standard
UL E489056
Temperature Rating
150 degrees C
Type
Standard
Wire Size
0 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210336176
Color
Metallic
Finish
Tin Plated
GTiN
00786210336176
Product UPC
78621033617

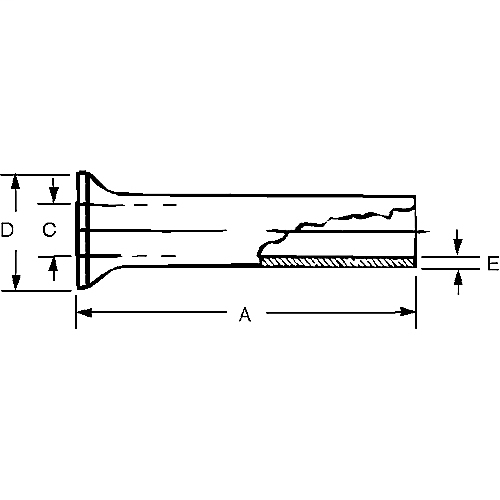

Dimensions

Inside Diameter
0.406 in
Outside Diameter
0.512 in
Overall Length
1.18 in
Features
  • Ferrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocks.
Notes
  • Ferrule dimensions conform to DIN 46228, Part 4.
