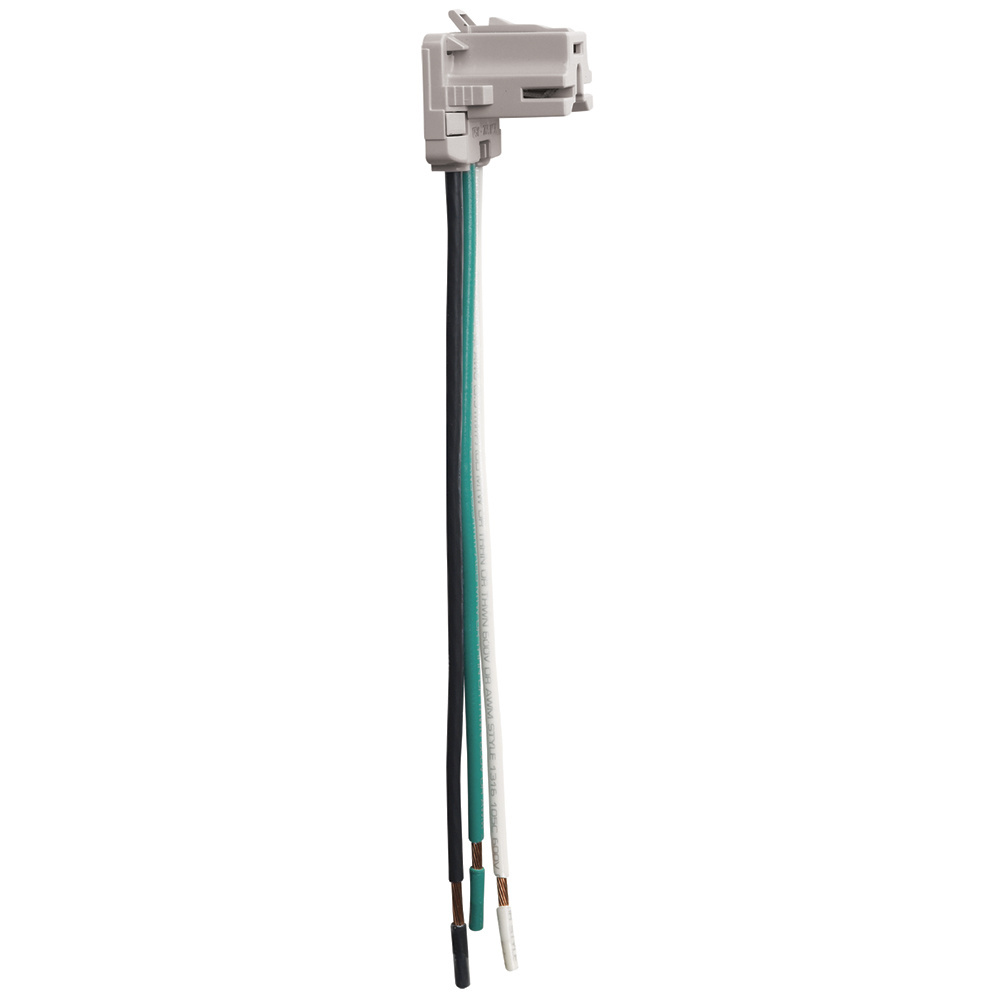

Product image for Pass & Seymour PTRA6-STRNA 6" Stranded Pigtail Connector, Right Angle
Image thumbnail 0
Image thumbnail 1
Email

Pass & Seymour PTRA6-STRNA 6" Stranded Pigtail Connector, Right Angle

Manufacturer: Legrand / Pass & Seymour | Catalog # PTRA6STRNA | North Coast Part # 1006152
$8.23/ea
ea
Order in multiples of 25 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure
NAFTA-Compliant PlugTail® Connectors Right Angle Stranded 6""For detailed PlugTail® information, visit our PlugTail® Headquarters.

Technical Information

Applications
Commercial
Conductor Size
12 AWG
Dielectric Strength
2000 V
Material
Polycarbonate
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
7.5 In
Temperature Rating
-40 degrees C
Type
Connectors
Wire Size
12 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007008296
Color
White
Finish
Matte
GTiN
00785007008296
Product Series
PlugTail
Product UPC
78500700829
UNSPSC
39121406

Dimensions

Length
6 Inch

Certifications and Compliance

Certifications
CULUS
Country of Origin
Mexico
Certifications
  • cULus Listed
Features
  • Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
  • Plated steel wrap strap design for maximum durability and corrosion resistance.
  • Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
  • Available in any wire length up to 25 inches, use Configurable Solutions to order.
  • NAFTA-Compliant
  • For covering patents, see www.legrand.us/patents.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
  • PlugTail™ Connector: #12 AWG, THHN, copper conductor, 6\"\" leads, stripped, stranded, for use with PlugTail Receptacles only
