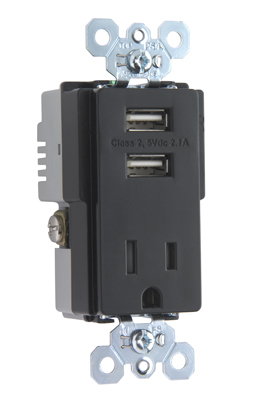

Product image for P&S TR5261USB 15A TR SPEC GRADE W/
Image thumbnail 0
Image thumbnail 1
Email

P&S TR5261USB 15A TR SPEC GRADE W/

Manufacturer: Legrand / Pass & Seymour | Catalog # TR5261USB | North Coast Part # 1008464
$49.55/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Designed for commercial markets with strength and durability in mind, this combination USB charger receptacle features 2.1A overall USB charging capability and is compatible with USB 2.0 & 3.0 devices. For detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.

Technical Information

Amperage
15 Amp
Applications
Commercial
Conductor Size
14-10 AWG
Dielectric Strength
Withstands 2000V minimum
Material
Thermoplastic
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
1.31" (D) x 1.60" (W) x 4.18" (H)
Style
Decorator
TC Connection
Side & Back Wired
Temperature Rating
Maximum continuous +60degrees C, minimum -40degrees without impact
Type
Tamper-Resistant USB Single Receptacle
Voltage
125 Volt
Wire Size
14-10 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007029116
Color
Brown
GTiN
00785007029116
Product UPC
78500702911

Dimensions

Depth
1.31 Inch
Height
4.18 Inch
Width
1.60 in

Certifications and Compliance

Country of Origin
China
Features
  • 2.1 A USB type A receptacle charges faster than other USB receptacles eliminates the need for bulky AC adapters.
  • Compact Design Tamper-Resistant receptacle and two 5-volt DC USB ports that work with USB 2.0 & 3.0 compatible devices.
  • Back and side wire terminals accommodates #14 AWG - #10 AWG stranded and solid wire.
  • Tamper-Resistant, patented shutter system prevents improper insertion of foreign objects. Meets 2011 National Electrical Code® Tamper-Resistant requirements.
  • Stainless steel auto-ground clip assures positive ground.
  • Zinc-plated ground terminal screw
  • For covering patents, see www.legrand.us/patents.
Eco-Benefit Information
  • RoHS Compliant
