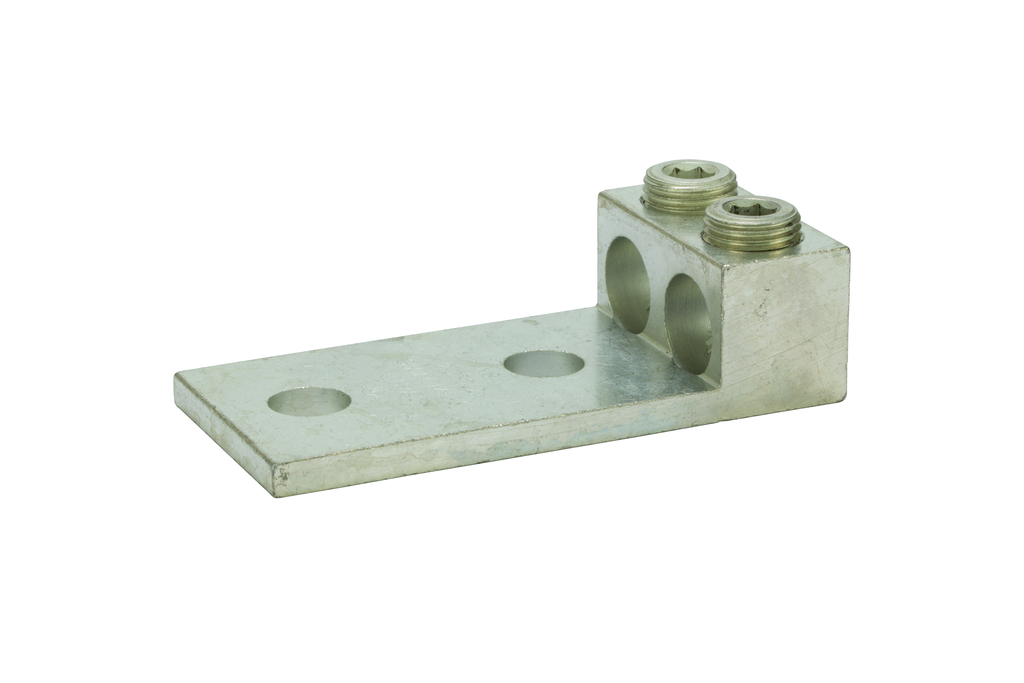

Product image for NSI 2-350L2 1/2 Inch 6 AWG to 350 MCM Aluminum 2-Port 2-Hole Panelboard Lug
Image thumbnail 0
Image thumbnail 1
Email

NSI 2-350L2 1/2 Inch 6 AWG to 350 MCM Aluminum 2-Port 2-Hole Panelboard Lug

Manufacturer: NSi Industries | Catalog # 2-350L2 | North Coast Part # 1008492
$53.56/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Buy American Compliant Buy American Compliant Specification Sheet
2 Port Panelboard Lug 350 MCM - 6 AWG Panelboard style for multi-conductor with NEMA mounting hole spacing for turn prevent and secureness. Made of 6061T-6 aluminum alloy. Electro-tin plated for low contact resistance. For use with copper or aluminum conductors. Rated 600 volts (2000V max per UL486B). UL 486A/B Listed. Temperature rating 90 degrees C. All hole spacing is NEMA standard of 1.750".

Technical Information

Applications
Wire Termination
Bolt Size
1/2 IN
Conductor Size
350 kcmil
Enclosure Rating
90 C
Material
6061T-6 Aluminum Alloy
Max Temperature
90 degrees C
Mounting Hole
2
Number of Conductors
2
Number of Poles
1 Pole
Number of Ports
2
Standard
CULUS
Temperature Rating
90 degrees C
Type
Panelboard Lug
Voltage
600 Volt
Wire Size
350 kcmil

Manufacturer Information

Brand
NSI Industries
Sub Brand
Mechanical Connector

General Product Info

12-Digit UPC
662381001412
Color
Aluminum
Environmental Conditions
90 degrees C
Finish
Tin Plated
GTiN
00662381001412
Product UPC
66238100141

Dimensions

Height
1.13 Inch
Length
4-1/4 Inch
Warranty Length
1 yr
Width
1.92 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
Features
  • Panelboard style for multi-conductor with NEMA mounting hole spacing for turn-prevent and secureness
  • Made of 6061T-6 aluminum alloy
  • Electro-tin plated for low contact resistance
  • For use with copper or aluminum conductors
  • All hole spacing is NEMA standard of 1.750 inch
Certifications and Standards
  • cULus
  • UL Listed
  • UL 486A-486B
