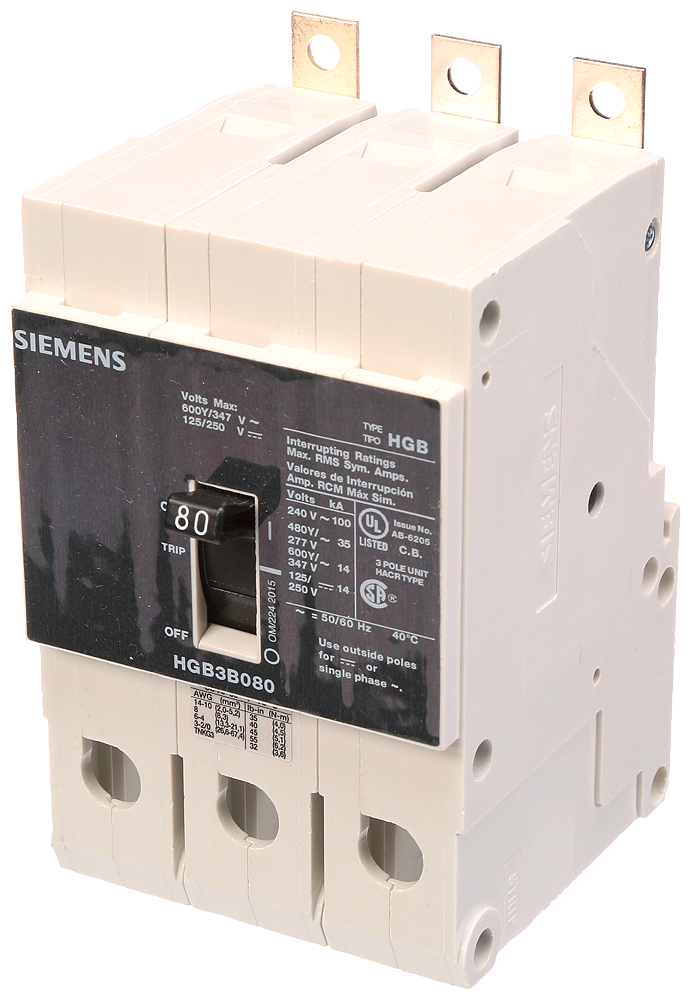

Product image for Siemens HGB3B080B BRKR HGB 80A 3P 480Y
Image thumbnail 0
Image thumbnail 1
Email

Siemens HGB3B080B BRKR HGB 80A 3P 480Y

Manufacturer: Siemens | Catalog # HGB3B080B | North Coast Part # 1016400
$1,430.44/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
SIEMENS LOW VOLTAGE PANELBOARD MOUNT G FRAME CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP. UL LISTED HGB FRAME WITH HIGH BREAKING CA PACITY. 80A 3-POLE (14KAIC AT 600Y/347V) (35KAIC AT 480Y/277V). SPECIAL FEATURES: MOUNTS ON PANELBOARD, LOAD SIDE LUGS ONLY (TC1GG20) WIRE RANGE: 8 - 1/0 AWS (CU/AL). DIMENSIONS (W x H x D) IN: 3 x 5.4 x 2.8.

Technical Information

Amperage
80 Amp
Applications
INDUSTRIAL
Connection Type
Low Tab Panelboard Mount
Frame
125A
Frequency
50/60 Hz
Interrupt Rating
35 kAIC
Material
MOLDED CASE CIRCUIT BREAKER
Number of Poles
3 Pole
Operating Temperature
40DEGC
Standard
UL
TC Connection
LOW TAB PANELBOARD MOUNT
Trip Type
THERMAL MAGNETIC TRIP UNIT
Type
HGB
Voltage
480 Volt

Manufacturer Information

Brand
Siemens

General Product Info

12-Digit UPC
887621219864
GTiN
00887621219864
Product UPC
88762121986
Weight
2.750 lb

Dimensions

Height
4.99 Inch
Length
2.87 Inch
Width
2.960 in

Certifications and Compliance

Country of Origin
Mexico
