Thomas & Betts F2034 .96 Inch Length 16 AWG 1.5 mm.. Wire Range Nylon Insulated Ferrule

Manufacturer: Thomas & Betts | Catalog # F2034 | North Coast Part # 1031
$121.06/c (100 ea)
ea
Order in multiples of 500 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page

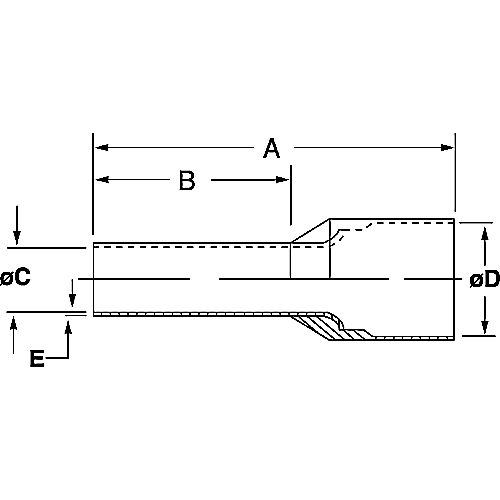

Polypropylene-Insulated Ferrule, Total Length .965 Inches/24.5mm, Pin Length .708 Inches/18mm, Pin Diameter .071 Inches/1.8mm, Base Diameter .134 Inches/3.4mm, Wire Range 16 AWG/1.50mm2, Color Black, Copper, Tin Plated

Technical Information

Conductor Size
16 AWG
Contact Material
Copper
Insulation Type
Insulated Nylon
Material
Copper
Standard
UL E489056
Strip Length
0.708 in
Temperature Rating
105 degrees C
Type
Polypropylene Insulated Ferrule
Wire Size
16 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210335148
Color
Black
Finish
Tin Plated
GTiN
05415022228731
Product UPC
78621033514
Used With
FER9500, FER9501, ERG4 Ferrule Tools

Dimensions

Inside Diameter
0.031 in
Outside Diameter
0.134 in
Overall Length
0.965
Features
  • Ferrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocks.
Notes
  • Ferrule dimensions conform to DIN 46228, Part 4.
