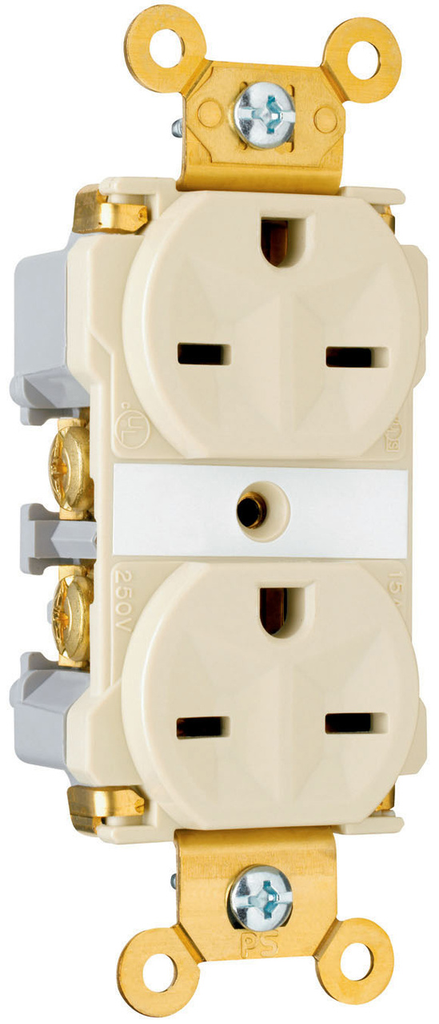

Product image for Pass & Seymour 5662-AI Industrial Extra Heavy-Duty Spec Grade Duplex Receptacle, Back & Side Wire, 15A 250V - Ivory
Image thumbnail 0
Image thumbnail 1
Email

Pass & Seymour 5662-AI Industrial Extra Heavy-Duty Spec Grade Duplex Receptacle, Back & Side Wire, 15A 250V - Ivory

Manufacturer: Legrand / Pass & Seymour | Catalog # 5662AI | North Coast Part # 1033381
$62.80/ea
ea
Order in multiples of 10 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Industrial Extra Heavy-Duty Spec Grade Duplex Receptacle Back & Side Wire 15amp 250volt Red

Technical Information

Amperage
15 Amp
Applications
Commercial,Residential
Capacity
Duplex
Conductor Size
14-10 AWG
Duty Rating
Extra Heavy Duty
Grade
Industrial
Material
Thermoplastic
NEMA
5-15R
Number of Phases
3 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
4.25x1.25x1.81
Type
Receptacles
Voltage
250 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007528251
Color
Ivory
GTiN
00785007528251
Product UPC
78500752825
UNSPSC
39121406

Dimensions

Depth
0.9 Inch
Height
2-3/4 Inch
Width
1.625 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Features
  • One-piece brass mounting strap with integral ground.
  • Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body.
  • Two drive screws anchor strap to back body and face.
  • Exclusive patented feature, circuit label on face allows permanent circuit identification.
  • .036 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
  • Impact-resistant nylon face and back body.
  • Oversized #10 deep tri-drive head brass terminal and ground screws.
  • Exclusive patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation.
  • External screw-pressure-plate back wire clamps with #10 brass terminal screws for visual assurance of a good connection.
  • Line terminals accept #14 -- #10 AWG stranded or solid copper clad conductors.
  • Auto-ground clip assures positive ground.
  • Corrosion-resistant models have nickel-plated straps and contacts.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Certifications
  • cULus Listed
  • Federal Spec Listed
