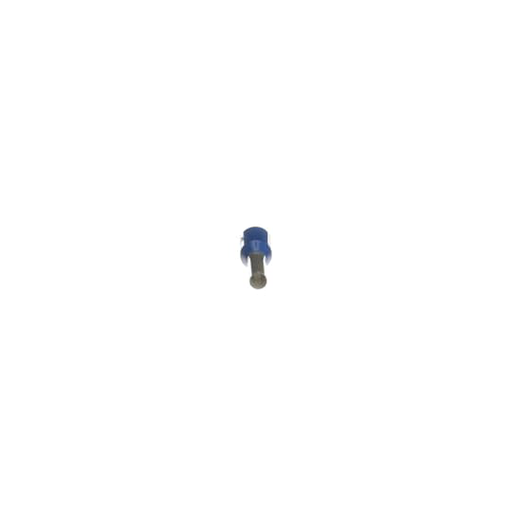

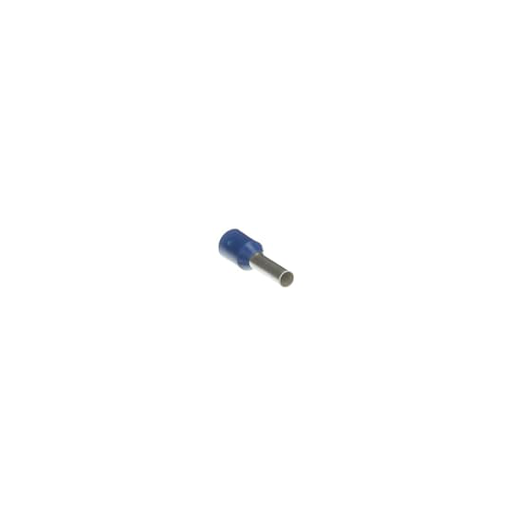

Thomas & Betts F2035 Insulated Ferrule - #14, .591", Blue (500/Pkg)

Manufacturer: Thomas & Betts | Catalog # F2035 | North Coast Part # 1044
$121.06/c (100 ea)
ea
Order in multiples of 500 (pack qty)
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Auburn Closes 3:00pm PT
0 available

For Delivery

Not in local stock *
Check another branch
*Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page
Polypropylene-Insulated Ferrule, Total Length .591 Inches/15mm, Pin Length .315 Inches/8mm, Pin Diameter .091 Inches/2.3mm, Base Diameter .165 Inches/4.2mm, Wire Range 14 AWG/2.50mm2, Color Blue, Copper, Tin Plated

Technical Information

Conductor Size
14 AWG
Contact Material
Copper
Insulation Type
Insulated Nylon
Material
Copper
Standard
UL E489056
Strip Length
8 mm
Temperature Rating
105 degrees C
Type
Polypropylene Insulated Ferrule
Wire Size
14 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210335155
Box Quantity
10000
Color
Blue
Construction Type
Standard
Finish
Electro Tin Plated
GTiN
05415022180633
Product UPC
78621033515

Dimensions

Overall Length
0.59 in
Features
  • Ferrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocks.
  • Application Tools: T1, T3, ERG4
