Hubbell CS8465C 50 Amp 480 Volt 2-Pole 3-Wire Black and White Locking Plug

Manufacturer: Hubbell / Kellems | Catalog # CS8465C | North Coast Part # 104544
$237.17/ea
ea
Order in multiples of 10 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Industrial, Male Plug, 50A 480V AC, 2-Pole 3-Wire Grounding, Non-NEMA, Screw Terminal, Black and White

Technical Information

Amperage
50 Amp
Applications
Extra Heavy Duty Industrial
Conductor Size
6 AWG
Cord Type
Portable
Current
50 Amp
Material
Nylon
Mounting Type
Cord
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA C22.2 No.42,UL 498
TC Connection
Pressure Screw Terminal
Type
Insulgrip, Straight, Industrial Grade
Voltage
480 Volt
Wattage
24000 Watt
Wire Count
3
Wire Size
10-6 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585829166
Color
Black,White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTiN
00783585829166
Product UPC
78358582916
Weight
1.25 lb

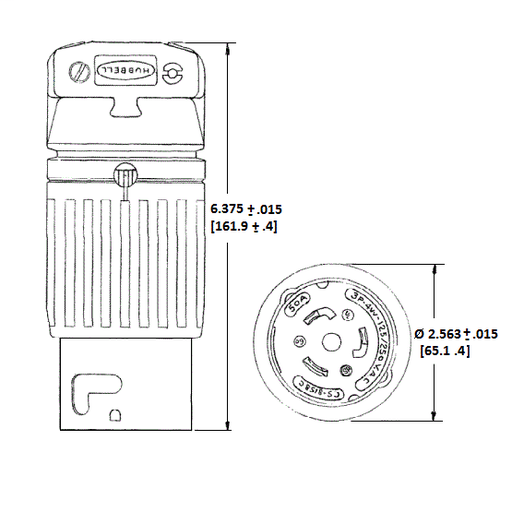

Dimensions

Height
2.56 Inch
Length
6.37 Inch
Width
2.56 in

Certifications and Compliance

Country of Origin
USA
Features
  • Super tough nylon housing offers better impact qualities
  • Stainless steel shroud protects contacts and prevents mismating
  • Heavy duty two-piece external cord clamp provides maximum strain relief
  • Box terminal with hex socket threaded slug, permits high clamping pressure on conductors without damaging strands
  • Thermoplastic polyester interior provides heat resistance and impact strength
  • Standard Product
