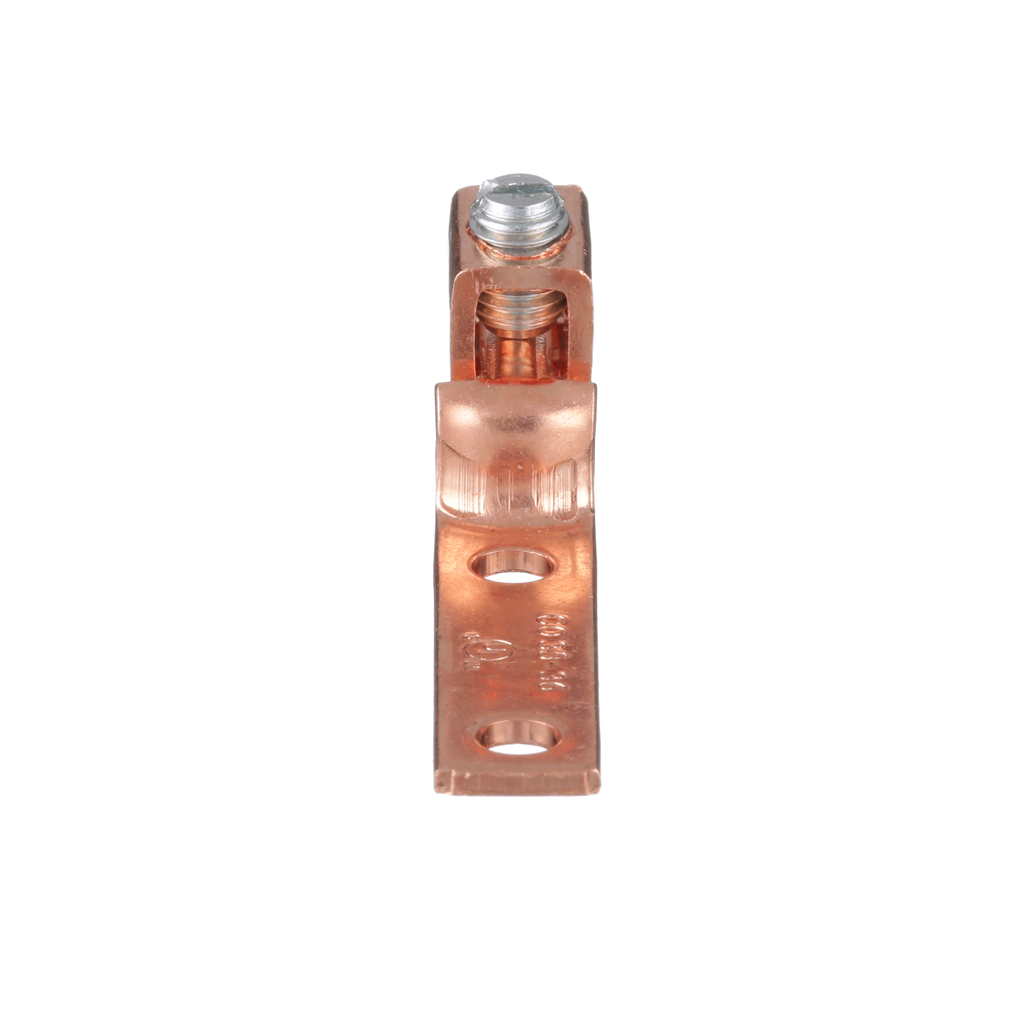

Product image for Panduit CO35-36SL-QY Mechanical Connectors, Lug
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

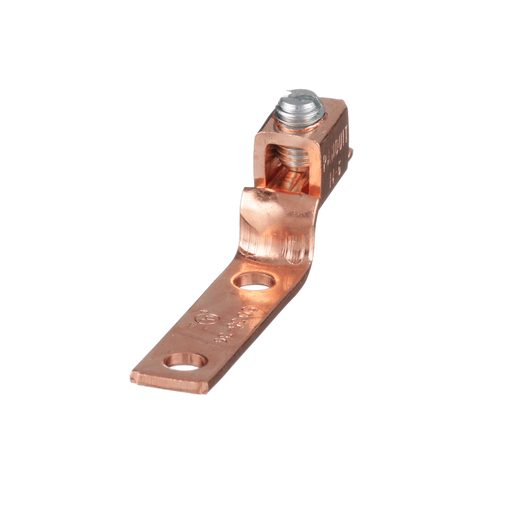

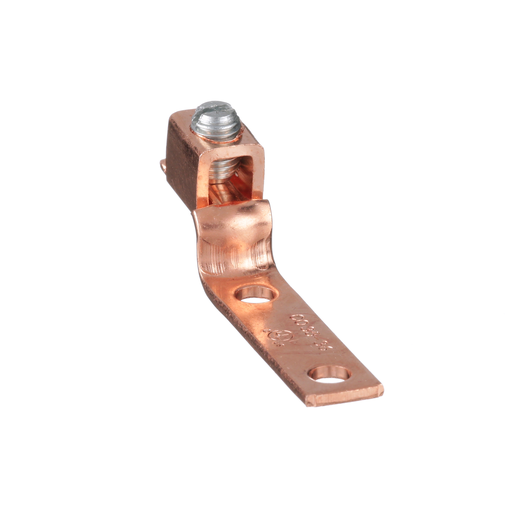

Panduit CO35-36SL-QY Mechanical Connectors, Lug

Manufacturer: Panduit | Catalog # CO35-36SL-QY | North Coast Part # 1047520
$440.75/c (100 ea)
ea
Order in multiples of 50 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Buy American Compliant Buy American Compliant Specification Sheet Product Catalog Page
The CO35-36SL-QY Mechanical Connector Lug two-hole copper, single barrel, is made from high strength electrolytic copper to provide premium electrical and mechanical performance for wide wire range-taking capability that helps minimize inventory requirements. The plated steel set screw provides a durable electrical contract between conductor and connector. The internal pressure bar and V-bottom collar provide uniform clamping force to assure positive contact.

Technical Information

Amperage
50 Amp
Barrel Length
0.43 in
Material
Copper
Stud Hole Size
3 in
Temperature Rating
90 C
Tongue Thickness
0.07 in
Tongue Type
Offset Floating
Tongue Width
0.38 in
Type
Mechanical Lug

Packaging

Pkg Qty
25

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983955190
GTiN
00074983955190
Product Type
Power Connectors
Product UPC
07498395519

Dimensions

Height
1/2 Inch
Length
2.19 Inch
Overall Length
2.19 in
Width
0.38 in

Certifications and Compliance

ARRA Compliant
Yes
Buy American Compliant
Y
Country of Origin
India
Hazmat Flag
No
Standards and Certifications
  • Standards Met: cULus Listed for use up to 600V & Temperature Rated to 90°C
