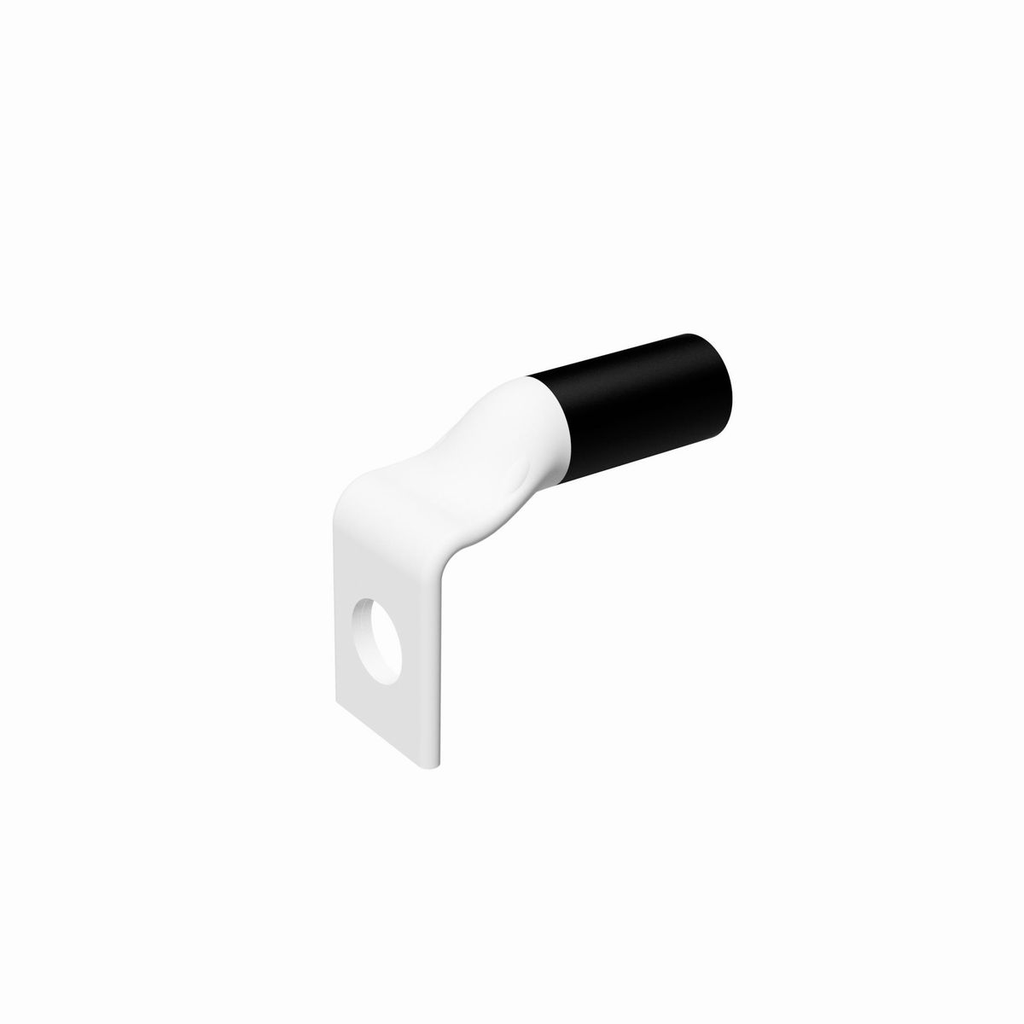

Product image for Burndy YA26L90 2/0 AWG CU, One Hole, 3/8 Stud Size, Standard Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA 90. Up to 35kV, BLACK Color Code, 13 Die Index
Image thumbnail 0
Image thumbnail 1
Email

Burndy YA26L90 2/0 AWG CU, One Hole, 3/8 Stud Size, Standard Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA 90. Up to 35kV, BLACK Color Code, 13 Die Index

Manufacturer: Burndy | Catalog # YA26L90 | North Coast Part # 1049353
$82.23/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Cu Tubing Cu Hylug, 1 Hole W/ Inspection Window, 2/0 AWG Code, 125 Navy, 600V-35kV, 3/8" stud, Standard, Compression, 0.40 in BCD, Black

Technical Information

Color Coding
Black
Conductor Material
COPPER
Conductor Size
2/0 AWG
Connection Type
Standard Barrel
Material
Copper
Max Voltage
35000 V
Plated?
Yes
Plating Type
Tin - Electro Plated

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810018811
Finish
Tin Plated
GTiN
00781810018811
Product UPC
78181001881

Dimensions

Hole Size
0.41 in
Length
1.21 Inch
Overall Length
31 mm

Certifications and Compliance

Country of Origin
USA
CSA
Yes
Features
  • Barrel designed with internal chamfer at wire entry for smooth insertion of wire, preventing possible damage of the strands
  • Standard barrel length is recommended for installations with limited space availability
  • Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
  • Connectors are clearly marked with stamping and barrel color coding
