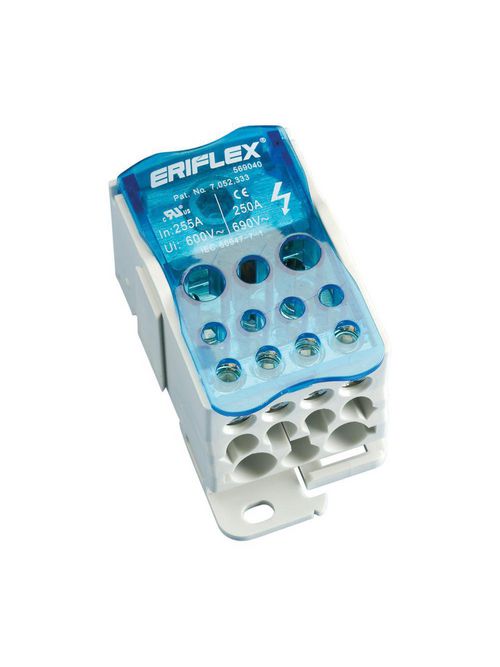

Erico 569040 Single Pole Dist. Block, 255 A UL/CSA, Cable Line, 11 Cables Load, Copper

Manufacturer: Eriflex | Catalog # 569040 | North Coast Part # 1057911
$92.57/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page
Primary device for easy assembly between a wide range of conductors to perform electrical power distribution. Single Pole Distribution Block UD-250A, Copper.

Technical Information

Amperage
250 Amp; 255 Amp
Applications
Schools, Hospitals, Office Buildings, Airports, Casinos, Stadiums, Petrochemical Plants, Automotive Plants Paper Plants, Food Processing, Power Plants Refineries, Manufacturing, Mining
Enclosure Rating
IP20
Material
Copper
Number of Conductors
11
Number of Poles
1 Pole
Size
1.99x3.79x1.93
Temperature Rating
185 degrees F
Type
Compact, Short-Circuit-Proof, Internally Fused, 1-Phase
Voltage
1,000 VAC/DC; 600 Volt

Manufacturer Information

Brand
nVent Erico
Sub Brand
ERIFLEX

General Product Info

12-Digit UPC
782856594208
Color
Blue/White
Environmental Conditions
86 To 167 Deg F
Finish
Tin Plated
GTiN
00782856594208
Product UPC
78285659420
Weight
0.43 kg

Dimensions

Depth
50-50
Features
  • Tinned copper or aluminum block allows for copper or aluminum conductor direct connections, or using ferrule
  • Screw retaining cover is hinged and removable
  • Design allows for visual inspection of conductor and confirmation of connection

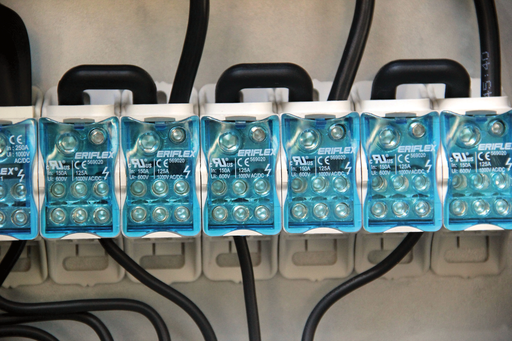

  • Modular snap-together blocks for building multi-pole power blocks
  • Easily clips onto DIN rail or mounts to panel with screws
  • 95% fill ratio
  • RoHS compliant
  • Conforms to EN 45545 obtaining an HL3 classification for chapter R23 and HL2 classification for chapter R22
  • Halogen free
Certifications
  • CSA CSA C22.2 No. 158
  • UR ANSI/UL 1059
  • cUR CSA C22.2 No. 158
  • CE, ERIFLEX UD EN 60947-7-1
  • EN 45545 EN 45545-2:2013
  • UKCA, ERIFLEX UD EN 60947-7-1
