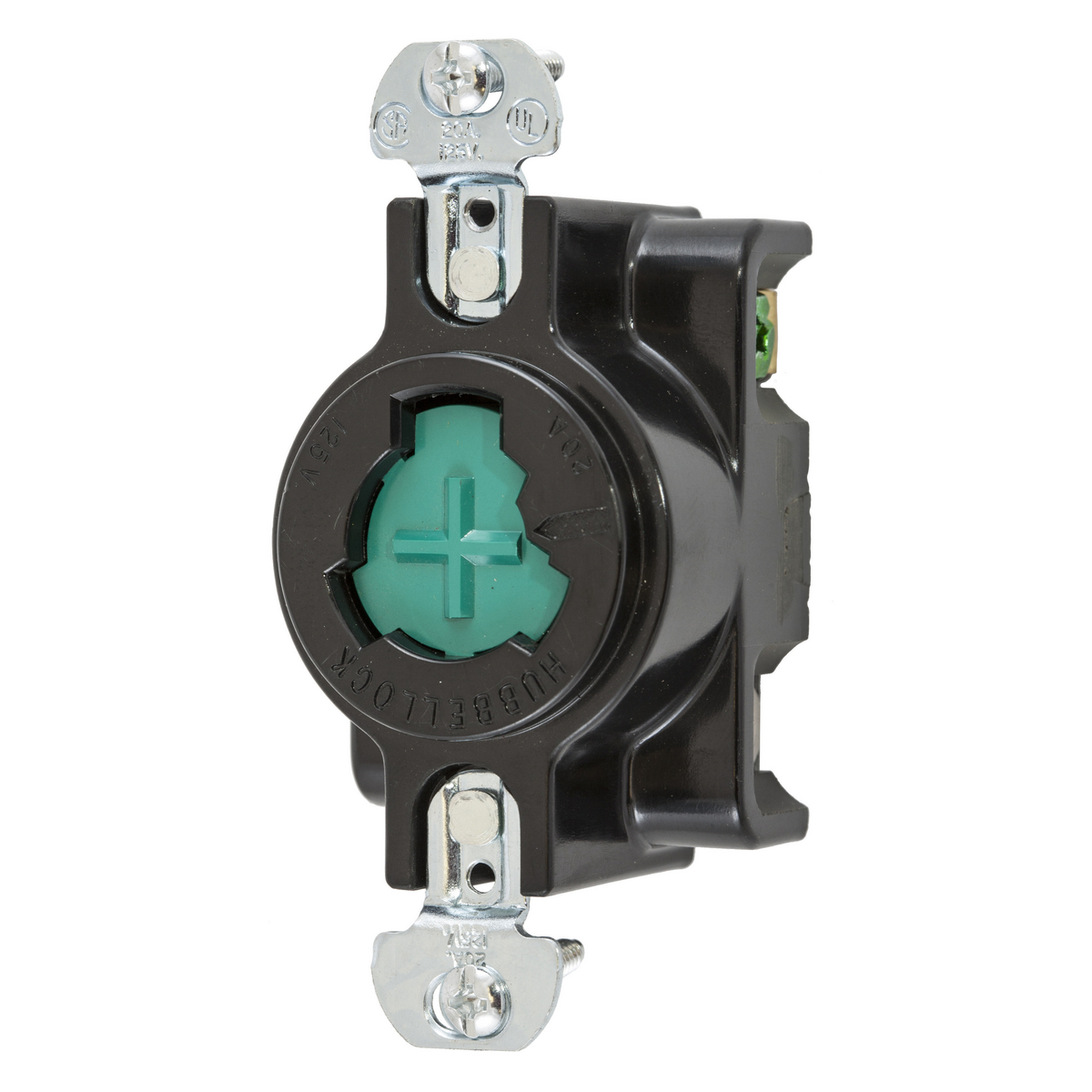

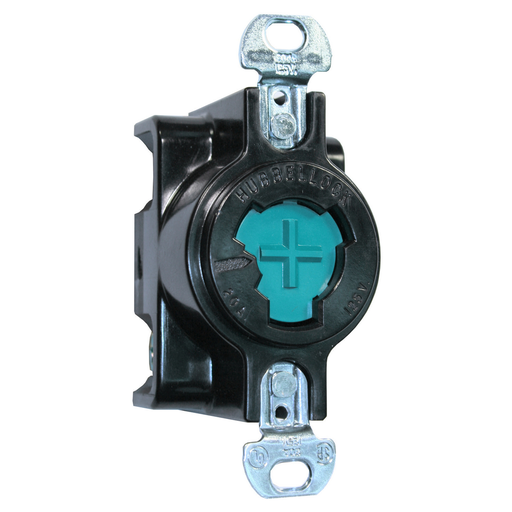

Hubbell HBL23030H/LOCK Receptacle, 2P3W, 20A 125V

Manufacturer: Hubbell / Kellems | Catalog # HBL23030 | North Coast Part # 106355
$261.30/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Hubbellock®, Industrial, Flush Receptacle, 20A 125V, 2-Pole 3-Wire Grounding, Non-NEMA, Black phenolic, back wired, Screw Terminal, Black

Technical Information

Amperage
20 Amp
Applications
Heavy Duty Industrial
Conductor Size
12 AWG
Current
20 Amp
Material
Thermoplastic
Mounting Type
Screw
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
Standard
TC Connection
Screw Terminal
Type
Single
Voltage
125 Volt
Wattage
2500 Watt
Wire Count
3
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Hubbell-Lock®

General Product Info

12-Digit UPC
783585017549
Color
Black
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTiN
00783585017549
Product UPC
78358501754
Weight
0.3 lb

Dimensions

Height
1.65 Inch
Length
3.28 Inch
Width
1.62 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • Spring loaded safety shutter contains arcing when mating or un-mating devices under load
  • Spring loaded safety shutter automatically ejects the plug eliminating contact teasing
  • Box terminals in conjunction with screws with pressure pads provide maximum termination strength and dependability
  • Thermoset molded housing provides maximum heat resistance
  • Auto Ejects Improperly Made Connection
