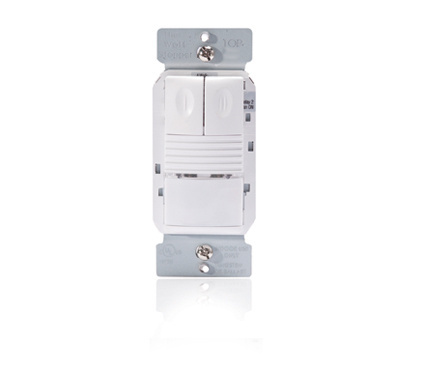

Product image for Wattstopper PW-302-LA 4.1 x 1.58 x 1.39 Inch 120/277 VAC Light Almond Passive Infrared Wall Switch Occupancy Sensor
Image thumbnail 0
Image thumbnail 1
Email

Wattstopper PW-302-LA 4.1 x 1.58 x 1.39 Inch 120/277 VAC Light Almond Passive Infrared Wall Switch Occupancy Sensor

Manufacturer: Wattstopper | Catalog # PW-302-LA | North Coast Part # 1065616
$253.26/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Installation / Instruction Manual
The PW-302 passive infrared (PIR) wall switch sensor turns lights ON and OFF based on occupancy. It contains two relays for controlling two independent lighting loads or circuits, and a variety of features.

Technical Information

Amperage
4.3 Amp
Applications
For Offices, Conference Rooms, Lunch/Break Rooms, Commercial
Enclosure
Plastic Housing
Indicator
True
Input Voltage
120/240/277 VAC
Lens Type
LED
Material
Plastic
Mounting Type
Strap
Number of Poles
1 Pole, Multi,Location
Operating Cycles
1000000
Operating Temperature
35degrees C
Sensing Range
1050 sq ft
Sensor Type
Passive Infrared
Standard
CSA C22.2 No. 14,IEC 60947-3,UL 508
Temperature Rating
35 degrees C
Type
Dual-Relay, Wall Switch, Automatic-On/Off, Manual-On/Off
Voltage
120-277 VAC

Manufacturer Information

Brand
WattStopper
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
754182935307
Color
Light Almond
Environmental Conditions
95% Humidity, UL 94 Requirements, V2 Rated Flammability
Finish
Matte
GTiN
00754182935307
Product UPC
75418293530

Dimensions

Depth
1.81 Inch
Height
2.73 Inch
Length
2.73 Inch
Width
1.75 in

Certifications and Compliance

Country of Origin
China
Features
  • Defaults to Auto-ON to 50% operation for maximum energy savings
  • Optional neutral connection with break off tab to expose neutral terminals
  • 120/240/277 VAC and 347 VAC models
  • Allows multi-way control from one of up to four control locations
  • High sensitivity and dense coverage for exceptional performance
  • Two relays for control of two separate lighting loads or circuits
