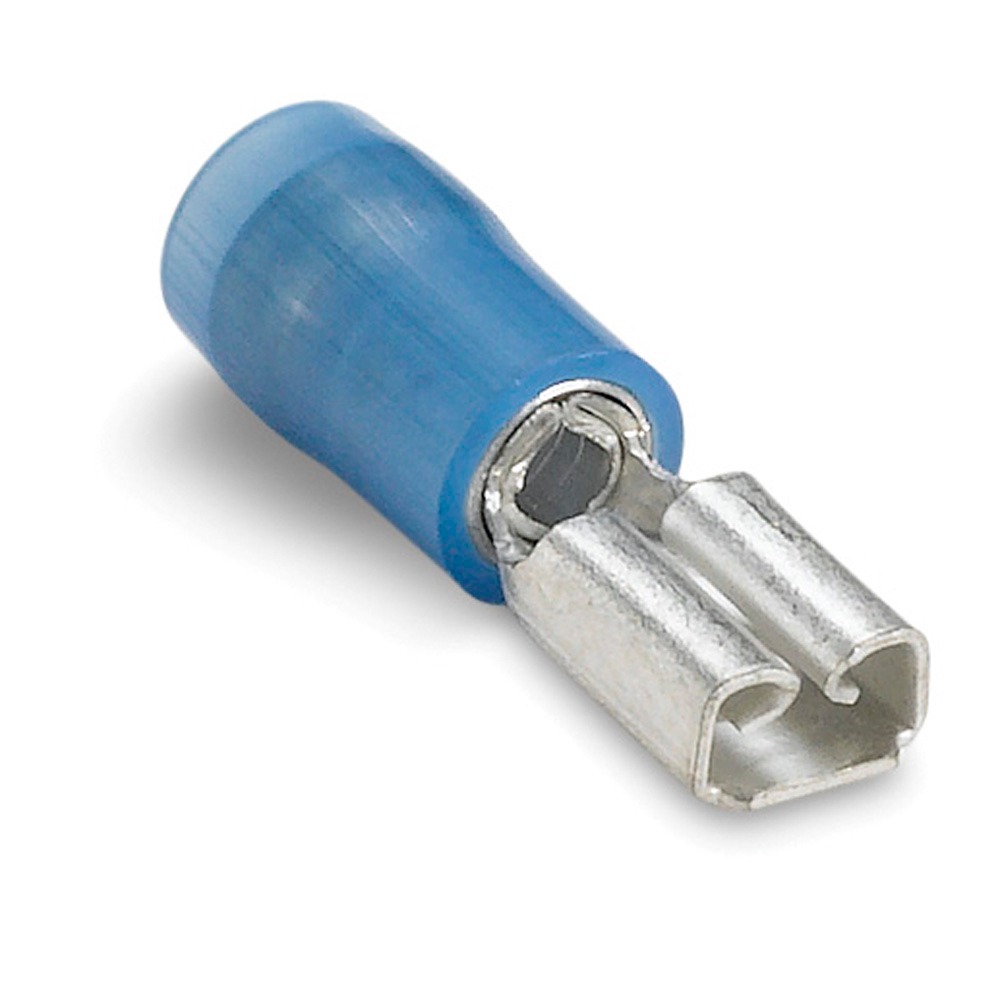

Thomas & Betts RBD14-183 .83 Inch Length 16-14 AWG Wire Range .187 Inch Tab Size Insulated Nylon Female Disconnect

Manufacturer: Thomas & Betts | Catalog # RBD14-183 | North Coast Part # 106670
$332.41/c (100 ea)
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet

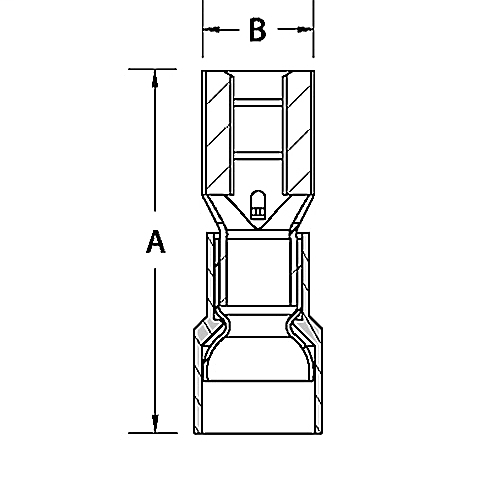

Nylon Insulated Female Disconnect, Length .83 Inches, Width .23 Inches, Maximum Insulation .163, Tab Size .187x.032, Wire Range #16-#14 AWG, Color Blue, Brass, Tin Plated

Technical Information

Conductor Size
16-14 AWG
Insulation Material
Nylon
Insulation Type
Nylon,Polyamide
Material
Brass
Temperature Rating
105 degrees C
Type
Short Sleeve
Voltage
600 Volt

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210816524
Color
Blue
Finish
Electro-Tin Plated
GTiN
05414363933632
Product UPC
78621081652

Dimensions

Length
0.83 Inch
Certifications
  • CSA
  • UL
Features
  • Quick, reliable method of connection to terminal blocks and boards without the use of tools. Unique construction of the female disconnect offers long-term dependability.
