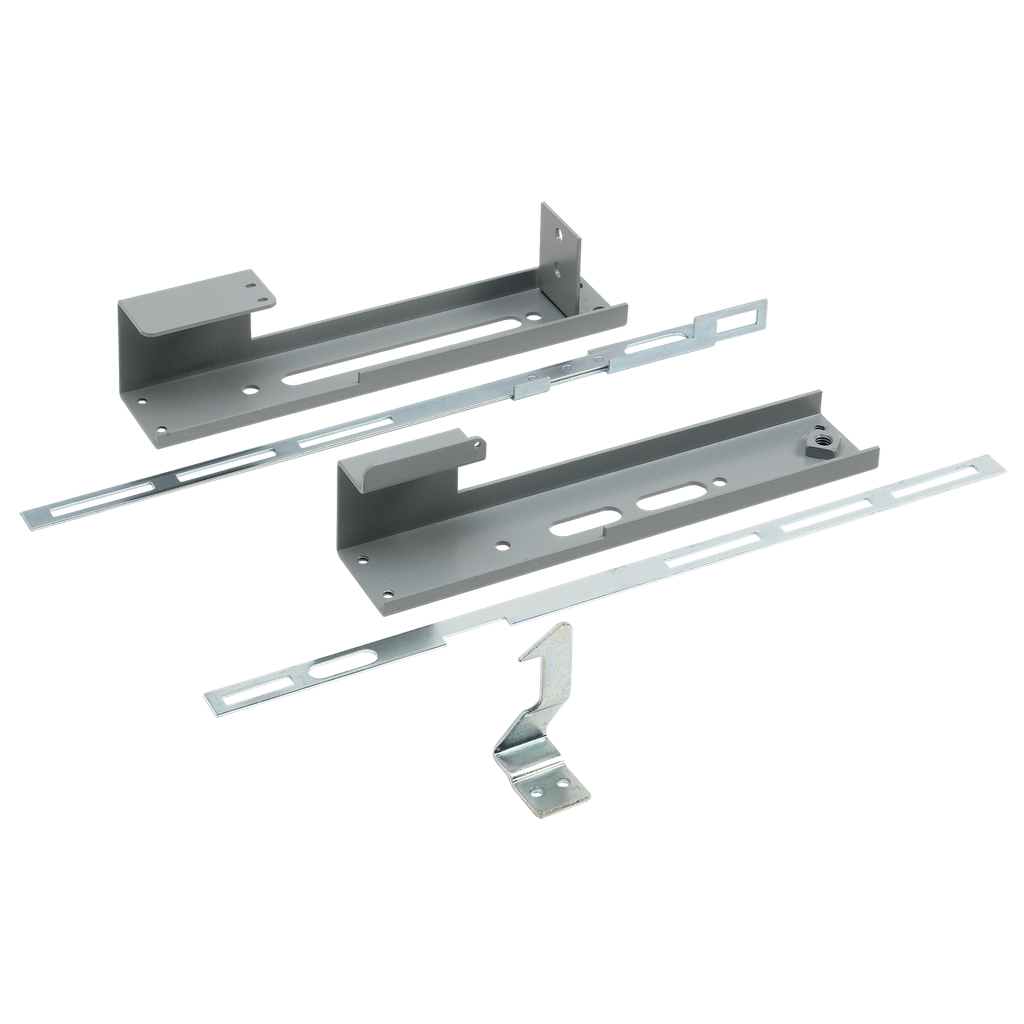

Product image for Hoffman SITES Operator Adapters for Universal Cutouts
Email

Hoffman SITES Operator Adapters for Universal Cutouts

Manufacturer: nVent Hoffman | Catalog # SITES | North Coast Part # 1069112
$404.78/ea
ea
Log in or register to view your price, purchase history, and more!
18 available

For Pick Up

at Auburn Opens Friday 5:00am PT
18 available

For Delivery

Order by Friday 4:00pm PT for delivery Monday
Not in local stock *
Check another branch
Specification Sheet
Used on all nVent HOFFMAN Type 4 and 12 disconnect enclosures with a universal flange cutout. An operator adapter is required to install a disconnect in Bulletin A21, A28, A34 and A4L3D HOFFMAN enclosures that have a universal cutout. Operator adapters include an adapter plate and additional components needed to interlock the master door with the disconnect operating mechanism. Installation instructions are included with each operator adapter. Each brand and type of disconnect requires a different operator adapter. Be sure to select the correct operator adapter and enclosure for the disconnect device selected. A 400A (or greater) disconnect switch and 600A (or greater) circuit breaker require the large handle. A 200A (or less) disconnect switch and 400A (or less) circuit breaker require a small handle.

Technical Information

Applications
Arc Flash Safety; Controls and Drives; Power Distribution
Color Coding
ANSI 61
Material
Steel
Type
Large Handle,Siemens I-T-E Max-Flex

Manufacturer Information

Brand
nVent Hoffman

General Product Info

12-Digit UPC
783510281038
Color
Gray
Finish
Powder Coated
GTiN
00783510281038
Product UPC
78351028103
Weight
1.5 lb

Dimensions

Depth
1/2 Inch
Height
10.56 Inch
Length
19.4 Inch
Thickness
2.66 mm
Width
2.44 in
Features
  • Used on all nVent HOFFMAN Type 4 and 12 disconnect enclosures with a universal flange cutout
  • An operator adapter is required to install a disconnect in Bulletin A21, A28, A34, A35 and A4L3D HOFFMAN enclosures that have a universal cutout
  • Operator adapters include an adapter plate and additional components needed to interlock the master door with the disconnect operating mechanism
  • Installation instructions are included with each operator adapter
  • Each brand and type of disconnect requires a different operator adapter
  • A 400A (or greater) disconnect switch and 600A (or greater) circuit breaker require the large handle
  • A 200A (or less) disconnect switch and 400A (or less) circuit breaker require a small handle
