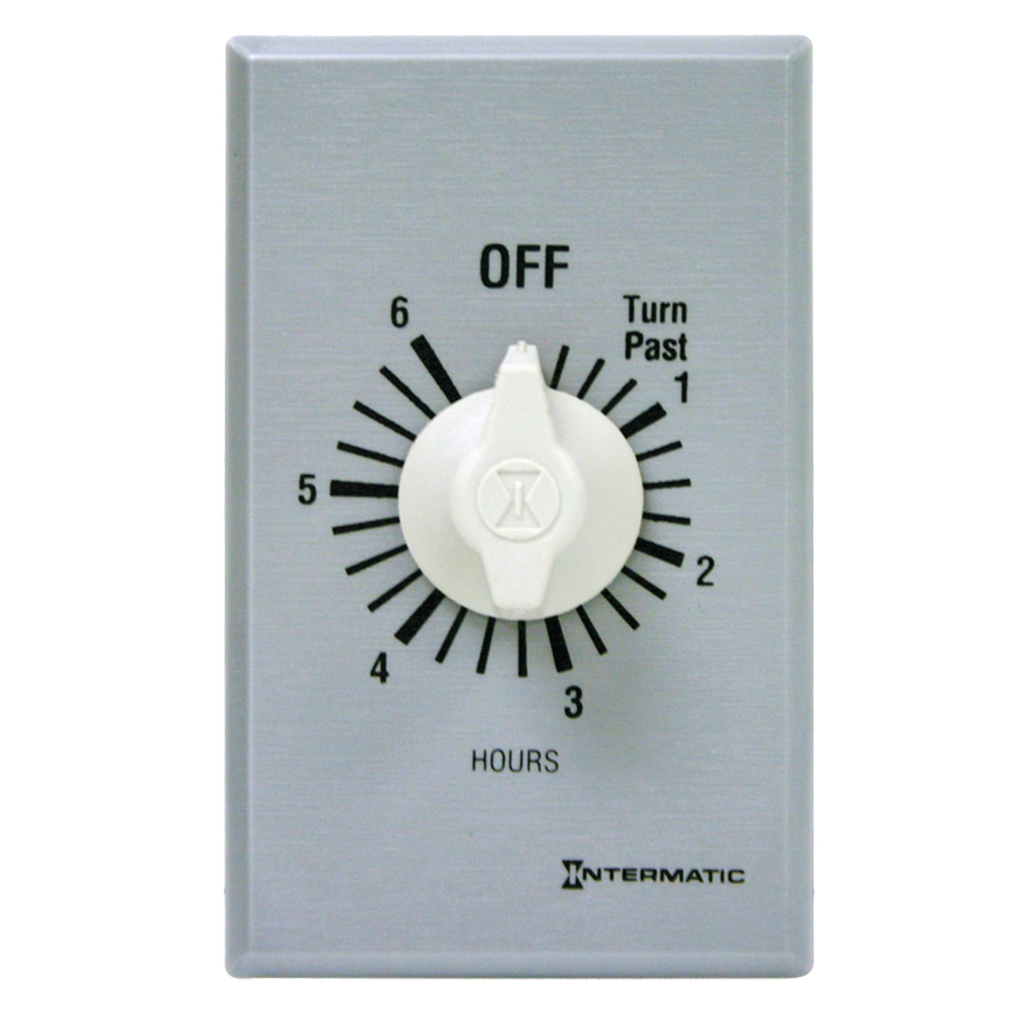

Product image for Intermatic FF36H 6 HOUR 125-277 V SPDT
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

Intermatic FF36H 6 HOUR 125-277 V SPDT

Manufacturer: Intermatic | Catalog # FF36H | North Coast Part # 107686
$140.99/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
CA Prop65 Warning CA Prop65 Warning Specification Sheet
The FF Series Commercial Countdown Timers are designed to replace any standard wall switch and do not require electricity to operate. These energy-efficient switches automatically limit the ON times for fans, lighting, motors, heaters, and other energy consuming loads. A commercial "brushed metal" look plate (plastic construction) meets NEC requirements.

Technical Information

Action
SPDT
Amperage
15 Amp
Applications
For Indoor, CFLs Lighting, Fans, Electric Motors, Heaters, HVACR
Connection Type
Teeter Type
Contact Configuration
SPDT - 1 NO, 1 NC
Contact Rating
7 A at 125 VAC (Tungsten), 20 A at 125 VAC (Resistive), 10 A at 250/277 VAC (Resistive)
Frequency
50/60 Hz
Input Voltage
125-277 V
Load Type
Back
Material
Plastic
Max Operating Temperature
120 degrees F
Min Operating Temperature
4 degrees C
Mounting Configuration
In-Wall
Mounting Type
Wall Mount
Number of Poles
1 Pole
Power Source
1 hp at 120 VAC, 2 hp at 240 VAC
Size
2.79 HEIGHT X 1.6 WIDTH X 1.19 DEPTH IN, 70.86 HEIGHT X 40.64 WIDTH X 30.22 DEPTH MM
Standard
CCSAus Certified,HVACR,NEC,UL Listed,UL Recognized
Switch Type
SPDT
TC Connection
Teeter Type
Temperature Rating
49.0 degrees C
Type
Mechanical, Commercial Spring Wound Auto-Off
Voltage
277 Volt

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
078275184268
Color
Silver
GTiN
00078275184268
Product Category
Home Improvement & Commercial Supplies - Electrical Switches & Dimmers
Product Type
Home Improvement & Commercial Supplies - Electrical Switches & Dimmers
Product UPC
07827518426
Weight
0.349 lb

Dimensions

Depth
1-1/4 Inch
Height
4-1/8 Inch
Warranty Length
1 yr
Width
1.75 in

Certifications and Compliance

CA Prop65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - DEHP
Country of Origin
Tunisia
Features
  • 6-Hour timer
  • SPDT (Single-Pole Double-Throw)
  • Breaks circuit at end of timing cycle
  • No electricity required to operate
  • Replaces any standard or decorator single-gang wall switch
  • Automatically limits ON time for energy consuming loads
  • Quick and easy installation
  • Time-saving up front terminal connection with teeter-type terminals
  • Brushed metal look switch plate meets NEC requirements (plate is included)
  • Incandescent/fluorescent/CFL/LED compatible
