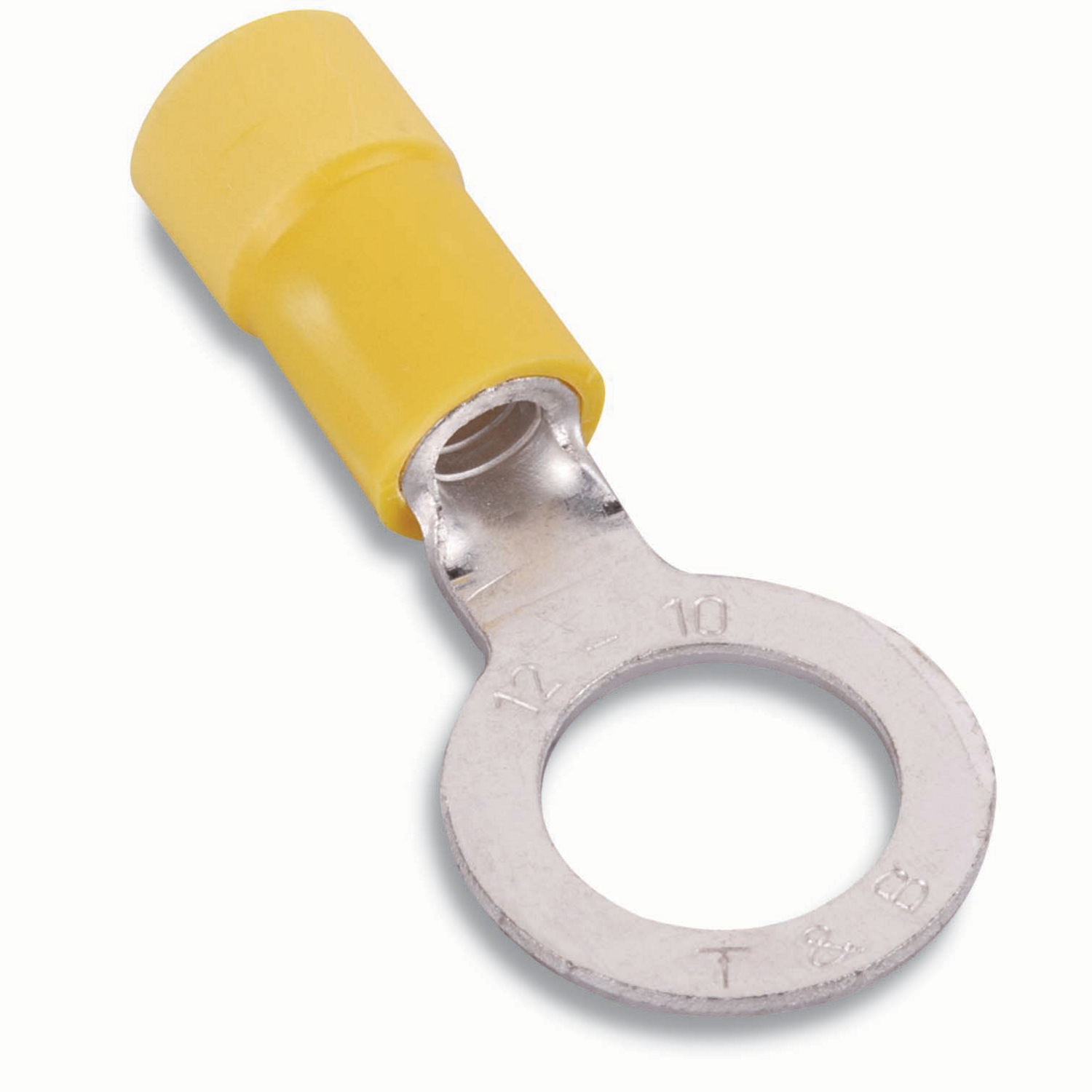

Thomas & Betts 10RC-14X 1/4 Inch Bolt Hole 12-10 AWG Wire Range Expanded Insulated Vinyl Ring Terminal

Manufacturer: Thomas & Betts | Catalog # 10RC-14X | North Coast Part # 107816
$451.28/c (100 ea)
ea
Order in multiples of 50 (pack qty)
Log in or register to view your price, purchase history, and more!
50 available

For Pick Up

at Auburn Opens Thursday 4:00am PT
50 available

For Delivery

Order by Thursday 4:00pm PT for delivery Friday
Not in local stock *
Check another branch
Specification Sheet

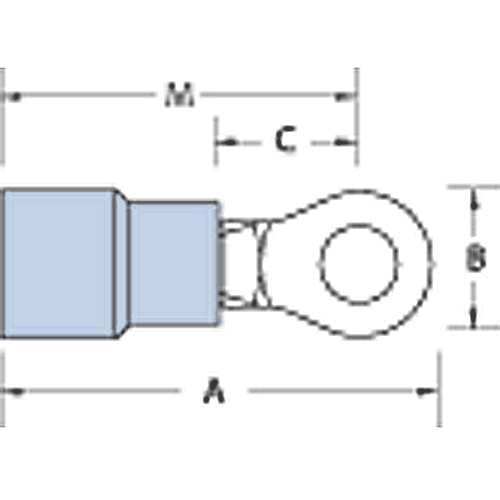

Expanded Vinyl-Insulated Ring Terminal, Length 1.16 Inches, Width .50 Inches, Maximum Insulation .250, Bolt Hole #10, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated

Technical Information

Conductor Size
12-10 AWG
Flamability Class
Rated V-0 Per UL94
Insulation Material
PVC
Insulation Type
Expanded Insulated Vinyl
Material
Copper
Stud Size
1/4 in
Temperature Rating
105 degrees C
Terminal Type
RC
Type
Short Sleeve
Voltage
600 Volt
Wire Size
12-10 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210800493
Color
Yellow
Finish
Tin Plated
GTiN
05414363136248
Product UPC
78621080049
Used With
Round Conductors

Dimensions

Thickness
.04 in
Features
  • Catalog numbers ending with the suffix X indicate an expanded insulation grip. This means a wider wire entry to accommodate heavy wall insulation. Ring terminals won't fall free even if the mounting screw loosens.
Certifications
  • UL
  • CSA
