Thomas & Betts F2037 .984 Inch Length 14 AWG 2.5 mm.. Wire Range Nylon Insulated Ferrule

Manufacturer: Thomas & Betts | Catalog # F2037 | North Coast Part # 1079
$157.51/c (100 ea)
ea
Order in multiples of 500 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page

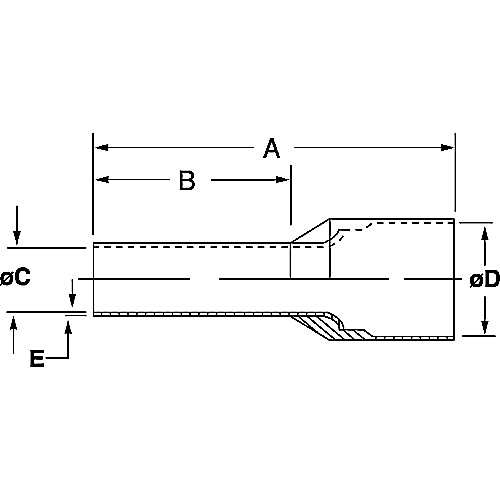

Polypropylene-Insulated Ferrule, Total Length .984 Inches/25mm, Pin Length .708 Inches/18mm, Pin Diameter .091 Inches/2.3mm, Base Diameter .165 Inches/4.2mm, Wire Range 14 AWG/2.50mm2, Color Blue, Copper, Tin Plated

Technical Information

Conductor Size
14 AWG
Contact Material
Copper
Insulation Type
Insulated Nylon
Material
Copper
Standard
UL E489056
Strip Length
0.708 in
Temperature Rating
105 degrees C
Type
Polypropylene Insulated Ferrule
Wire Size
14 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210335179
Color
Blue
Finish
Tin Plated
GTiN
05415022228748
Product UPC
78621033517
Used With
FER9500, FER9501, ERG4 Ferrule Tools

Dimensions

Inside Diameter
0.091 in
Outside Diameter
0.165 in
Overall Length
0.984
Features
  • Ferrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocks.
Notes
  • Ferrule dimensions conform to DIN 46228, Part 4.
