ABB RH717 INS NYL RING TERM, 1/0, 1

Manufacturer: Thomas & Betts | Catalog # RH717 | North Coast Part # 1079690
$1,707.10/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page

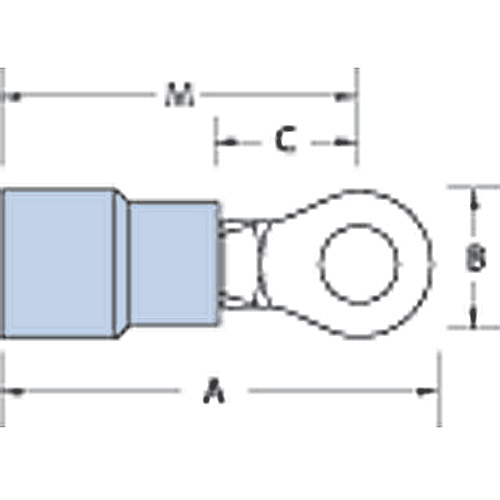

Nylon Insulated Large Ring Terminal, Length 2.14 Inches, Width .77 Inches, Maximum Insulation .629, Bolt Hole 1/4 Inch, Wire Range 1/0, Color White, Copper, Tin Plated, 50 Pack

Technical Information

Conductor Size
1/0 AWG
Insulation Material
Nylon
Insulation Type
Insulated Nylon
Material
Copper
Standard
UL E9809
Stud Size
1/4 in
Temperature Rating
105 degrees C
Type
Nylon Insulated Ring Terminal
Voltage
600 Volt
Wire Size
0 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210821177
Color
White
Finish
Electro Tin Plated
GTiN
00786210821177
Product UPC
78621082117
Features
  • Funneled Barrel Entry, Deep Internal Serrations, Brazed or overlapping seams.
Notes
  • Not available on Mylar Tape.
