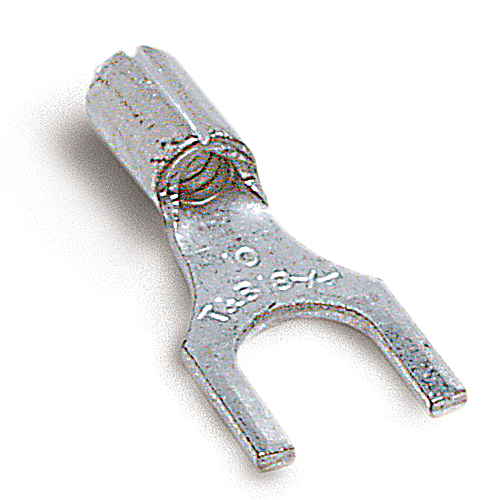

Product image for Thomas & Betts A116 Non-Insulated Fork Terminal - #22-16, #6bolt (1000/Pkg)
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Thomas & Betts A116 Non-Insulated Fork Terminal - #22-16, #6bolt (1000/Pkg)

Manufacturer: Thomas & Betts | Catalog # A116 | North Coast Part # 107990
$53.93/c (100 ea)
ea
Order in multiples of 1000 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Non-Insulated Fork Terminal, Length .75 Inches, Width .25 Inches, Bolt Hole #6, Wire Range #22-#16 AWG, Copper, Tin Plated

Technical Information

Barrel Type
Serrated
Conductor Size
22-16 AWG
Insulation Type
Non-Insulated
Material
Copper
Stud Size
#6
Temperature Rating
150 degrees C
Type
Non-Insulated Fork Terminal
Voltage
600 Volt
Wire Size
22-16 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210808277
Color
Metallic
Finish
Tin Plated
GTiN
05414363935384
Product UPC
78621080827
Used With
WT110M Hand Tool Plier, WT111M Crimping Plier, WT112M Wire Stripper, WT2000 Hand Tool Plier, ERG4002 Crimp Tool

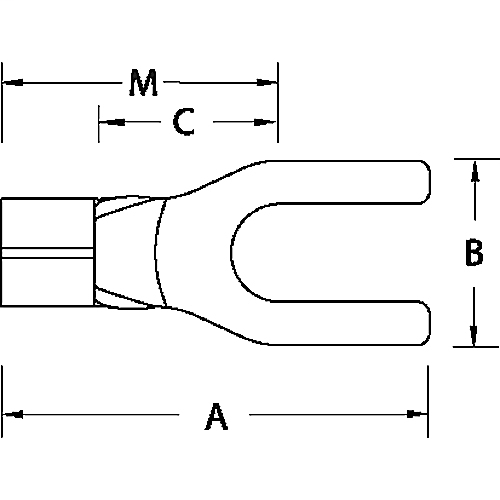

Dimensions

Length
3/4 Inch
Width
1/4 in
Features
  • These non-insulated fork terminals are made of electrolytic copper for high conductivity. They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire). Serrated barrel increases grip on wire.
Notes
  • Most terminals can be put on Mylar Tape for reel fed applications by adding the suffix M to the bulk catalog numbers.
