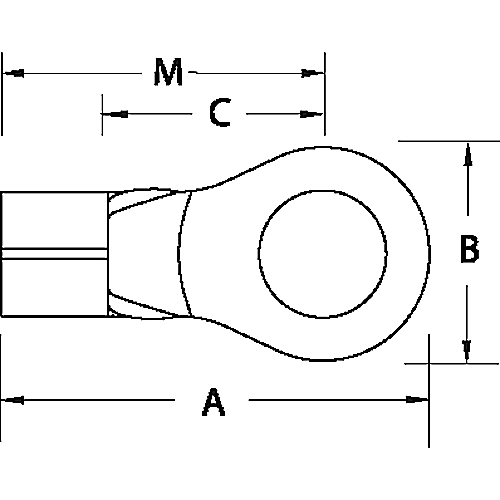

Image thumbnail 2
Email

Thomas & Betts A18-8 Non-Insulated Ring Terminal - #22-16, #8bolt

Manufacturer: Thomas & Betts | Catalog # A18-8 | North Coast Part # 108464
$116.03/c (100 ea)
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Non-Insulated Ring Terminal, Length .75 Inches, Width .31 Inches, Bolt Hole #8, Wire Range #22-#16 AWG, Copper, Tin Plated

Technical Information

Conductor Size
22-16 AWG
Flamability Class
Rated V-0 Per UL94
Insulation Type
Non-Insulated
Material
Copper
Stud Size
#8
Temperature Rating
150 degrees C
Terminal Type
A
Type
Short Sleeve
Voltage
600 Volt
Wire Size
22-16 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210803005
Color
Metallic
Finish
Electro Tin Plated
GTiN
05414363147169
Product UPC
78621080300

Dimensions

Height
3 Inch
Thickness
.03 in
Width
1.63 in
Certifications
  • CSA
  • UL
Features
  • These non-insulated ring terminals are made of electrolytic copper for high conductivity. They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire). Serrated barrel increases grip on wire.
