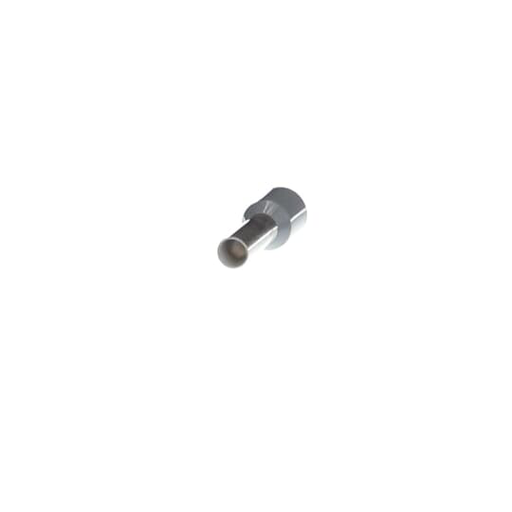

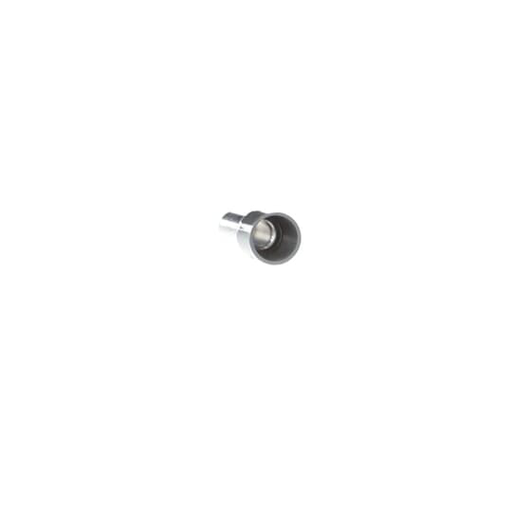

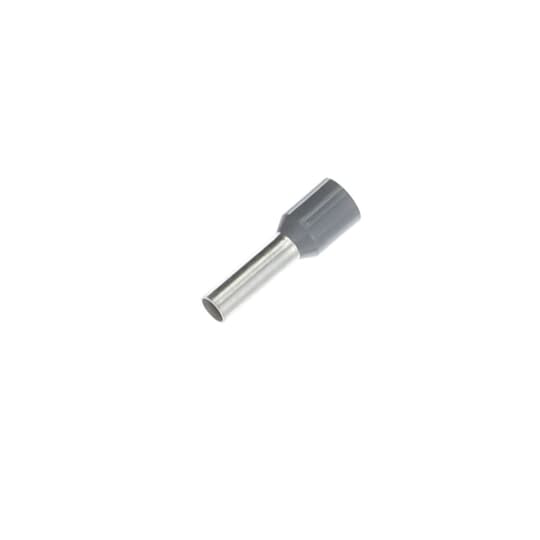

Product image for Thomas & Betts F2038 Insulated Ferrule - #12, .889", Gray (500/Pkg)
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Thomas & Betts F2038 Insulated Ferrule - #12, .889", Gray (500/Pkg)

Manufacturer: Thomas & Betts | Catalog # F2038 | North Coast Part # 1091
$145.26/c (100 ea)
ea
Order in multiples of 500 (pack qty)
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Auburn Opens Thursday 4:00am PT
0 available

For Delivery

Not in local stock *
Check another branch
*Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page
Polypropylene-Insulated Ferrule, Total Length .689 Inches/17.5mm, Pin Length .394 Inches/10mm, Pin Diameter .114 Inches/2.9mm, Base Diameter .189 Inches/4.8mm, Wire Range 12 AWG/4.00mm2, Color Gray, Copper, Tin Plated

Technical Information

Conductor Size
12 AWG
Contact Material
Copper
Insulation Type
Insulated Nylon
Material
Copper
Standard
UL E489056
Strip Length
10 mm
Temperature Rating
105 degrees C
Type
Polypropylene Insulated Ferrule
Wire Size
12 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210358376
Color
Gray
Finish
Electro Tin Plated
GTiN
05415022180640
Product UPC
78621035837

Dimensions

Overall Length
0.889 in
Features
  • Ferrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocks.
Notes
  • Ferrule dimensions conform to DIN 46228, Part 4.
