Hubbell Wiring Devices HBL26W74 20 Amp 125/250 Volt 3-Pole 4-Wire NEMA L16-20P Locking Plug

Manufacturer: Hubbell / Kellems | Catalog # HBL26W74 | North Coast Part # 1094178
$93.25/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
5 available

For Delivery

Order by Thursday 4:00pm PT for delivery Friday
Out of stock, call for availability
Specification Sheet Product Catalog Page

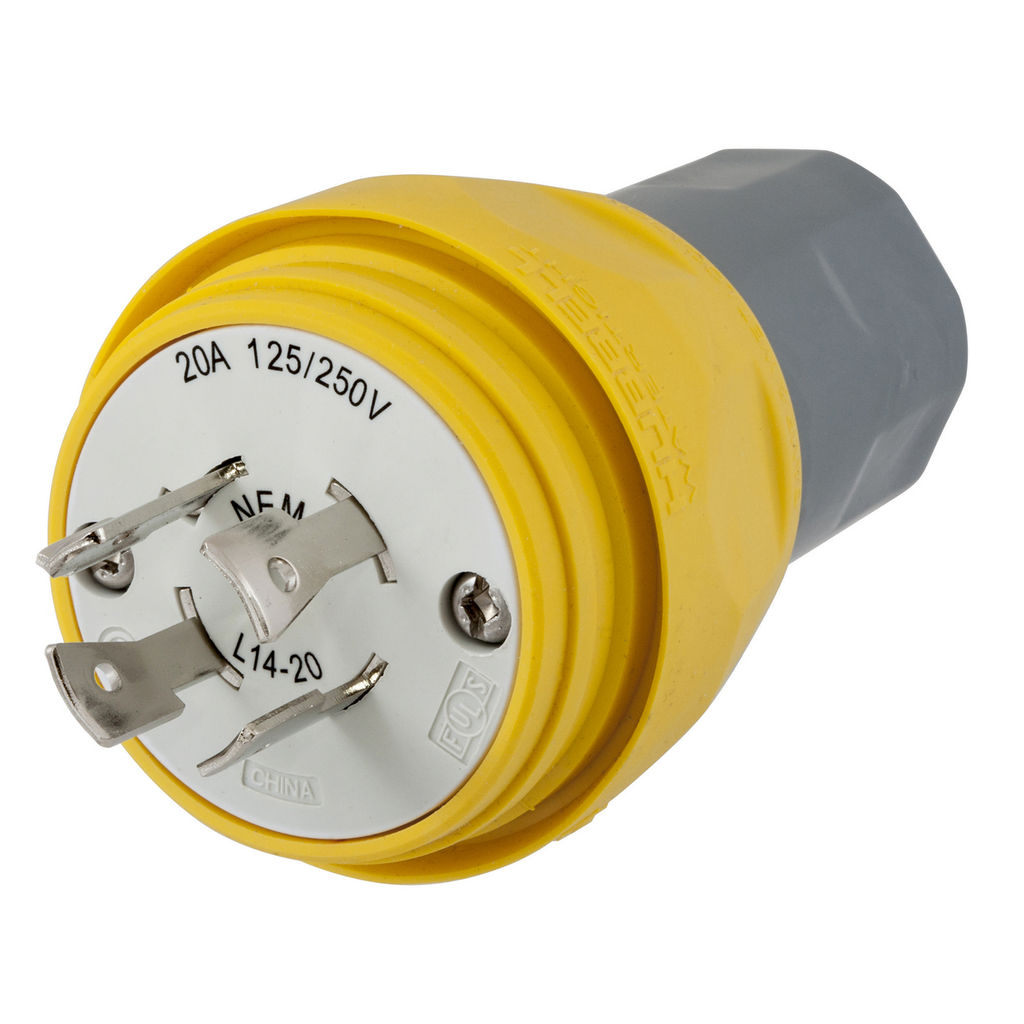

Watertight Devices, Twist-Lock Plug, 20A, 125/250V AC, 3 Pole, 4 Wire, Thermoplastic elastomer, NEMA L14-20P, Yellow

Technical Information

Applications
Industrial/Commercial
Blade Dimensions
2.51 in dia x 3.96 in L
Conductor Size
16/3 SJ, 18/3 S, 18/4 SJ, 18/4 S, 18/5 S Min, 10/3 S, 10/4 S, 10/5 S Max AWG
Contact Material
Nickel Plated Brass
Cord Size
3/8 - 7/8 in
Cord Type
SJ, S
Current
20 A
Dielectric Strength
2500 VAC
Material
Thermoplastic
Number of Poles
3 Pole
Number of Wires
4
Size
2.51 in x 2.51 in x 3.96 in
Standard
ANSI Standards,Meets NEMA WD-1,WD-6
TC Connection
Screw Terminals
Temperature Rating
-40 to 60 C Continuous
Type
Industrial Grade
Voltage
125 Volt
Wire Size
Min. Cord: 16/3 SJ, 18/3 S, 18/4 SJ, 18/4 S, 18/5 S;Max. Cord: 10/3 S, 10/4 S, 10/5 S

Manufacturer Information

Family Brand Name
Hubbell Wiring Device Kellems
Sub Brand
Twist-Lock

General Product Info

Color
Yellow
Environmental Conditions
Watertight
GTiN
00783585131627
Product UPC
78358513162

Dimensions

Height
2-1/2 Inch
Length
13-1/2 Inch
Width
2.51 in

Certifications and Compliance

Country of Origin
China
