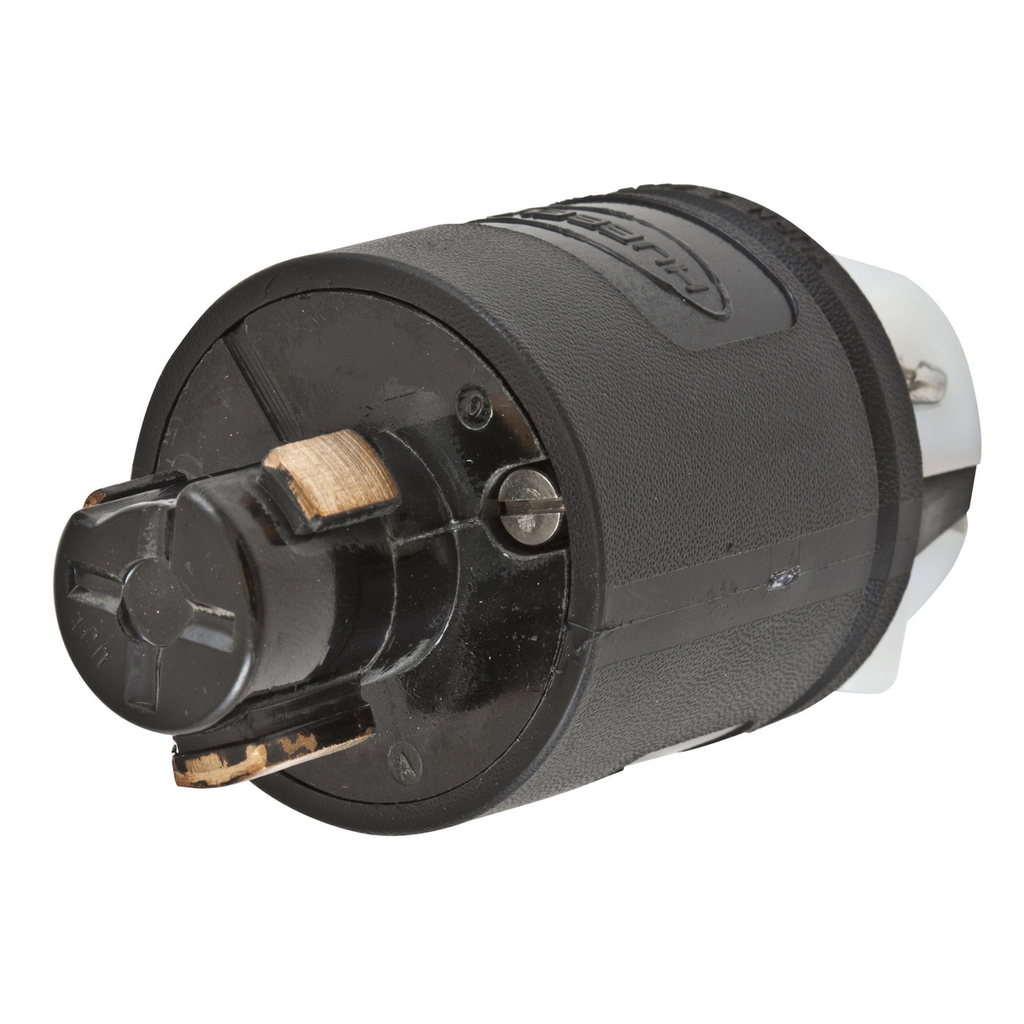

Product image for Hubbell HBL23005GB 20 Amp 125 Volt 2-Pole 3-Wire Black and White Locking Plug
Image thumbnail 0
Image thumbnail 1
Email

Hubbell HBL23005GB 20 Amp 125 Volt 2-Pole 3-Wire Black and White Locking Plug

Manufacturer: Hubbell / Kellems | Catalog # HBL23005GB | North Coast Part # 109489
$252.09/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Hubbellock®, Industrial, Male Plug, 20A, 125V, 2-Pole 3-Wire Grounding, Nylon housing, thermoset interior, Non- NEMA, Screw Terminal, Black/White

Technical Information

Amperage
20 Amp
Applications
Heavy Duty Industrial
Conductor Size
14-10 AWG
Cord Type
Portable
Current
20 Amp
Grounding
Yes
Material
Composite
Mounting Type
Cord
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
TC Connection
Pressure Terminal Screws
Type
Standard Sized
Voltage
125 Volt
Wire Count
3
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Hubbell-Lock®

General Product Info

12-Digit UPC
783585017389
Color
Black,White
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
GTiN
00783585017389
Product UPC
78358501738
Weight
0.25 lb

Dimensions

Height
3.22 Inch
Length
1.72 Inch
Width
2.200 in

Certifications and Compliance

Country of Origin
USA
Features
  • Molded-in male contacts are resistant to damage and provide a consistently positive connection
  • Insulated non-metallic housing enhances safety and abuse resistance
  • Box terminals in conjunction with screws with pressure pads provide maximum termination strength and dependability
  • Three-piece clamp assembly provides maximum strain relief and protects against entry of moisture and dust
