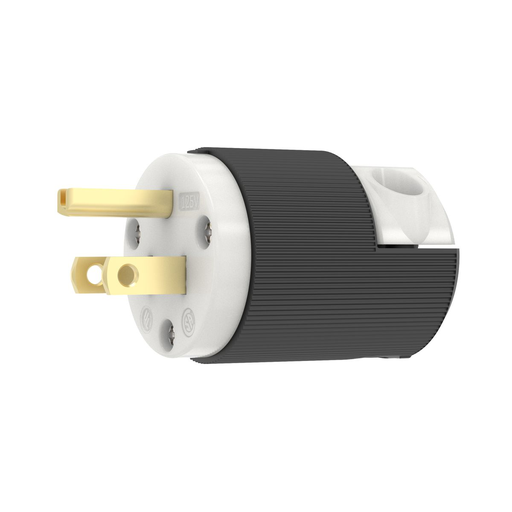

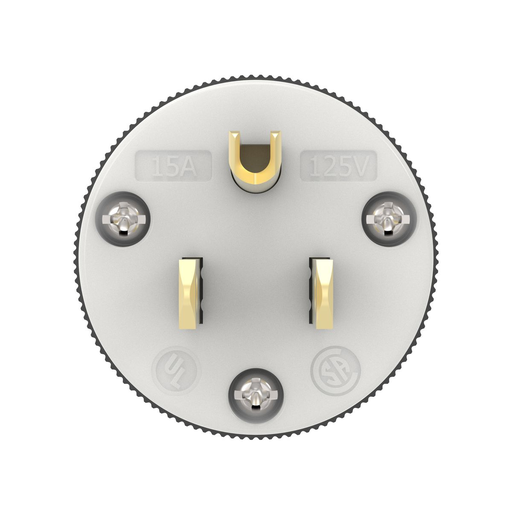

Hubbell HBL5266-C 15A 125V INSULGRIP Black Nylon Plug, Straight

Manufacturer: Hubbell / Kellems | Catalog # HBL5266C | North Coast Part # 109708

$34.93/ea
ea
Log in or register to view your price, purchase history, and more!
28 available

For Pick Up

at Auburn Closes 4:00pm PT
28 available

For Delivery

Order by 4:00pm PT for delivery tomorrow
Not in local stock *
Check another branch
Straight Blade Devices, Male Plug, Insulgrip-Heavy Duty, Industrial/Commercial Grade, Straight, 2-Pole 3- Wire Grounding, 15A125V, 5-15P, Black and White, Single Pack.

Technical Information

Amperage
15 Amp
Applications
Industrial/Commercial
Conductor Size
16-10 AWG
Cord Type
Portable
Current
15 Amp
Grounding
Yes
Material
Thermoplastic
Mounting Type
Cord
NEMA
5-15P
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
C22.2 No. 42 File 280,CSA,Fed. Spec. W-C596G,NEMA® WD-6,UL,UL498 File E1706
Style
Standard
TC Connection
Terminal Screws
Type
Insulgrip, Standard Sized
Voltage
125 Volt
Wattage
1875 Watt
Wire Count
3
Wire Size
18-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Insulgrip®

General Product Info

12-Digit UPC
783585173009
Color
Black,White
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
GTiN
00783585173009
Product Series
Insulgrip
Product UPC
78358517300
Weight
0.15 lb

Dimensions

Height
1.96 Inch
Length
1.52 Inch
Width
1.52 in

Certifications and Compliance

Country of Origin
USA
Features
  • Ribbed nylon housing is impact and chemical resistant.

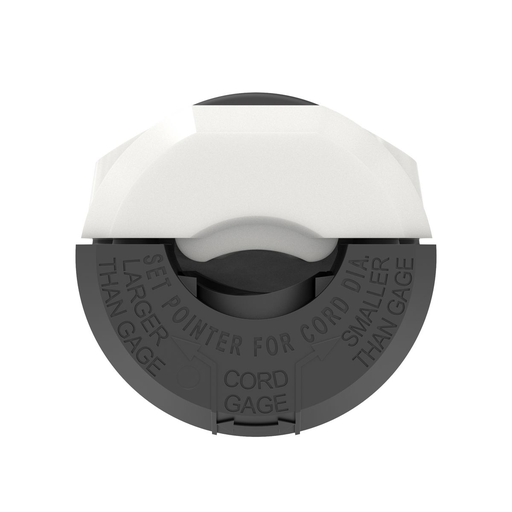

  • VARI-SIZE adjustable cord clamp
  • Fast lead assembly screws
  • Beveled housing prevents snagging
