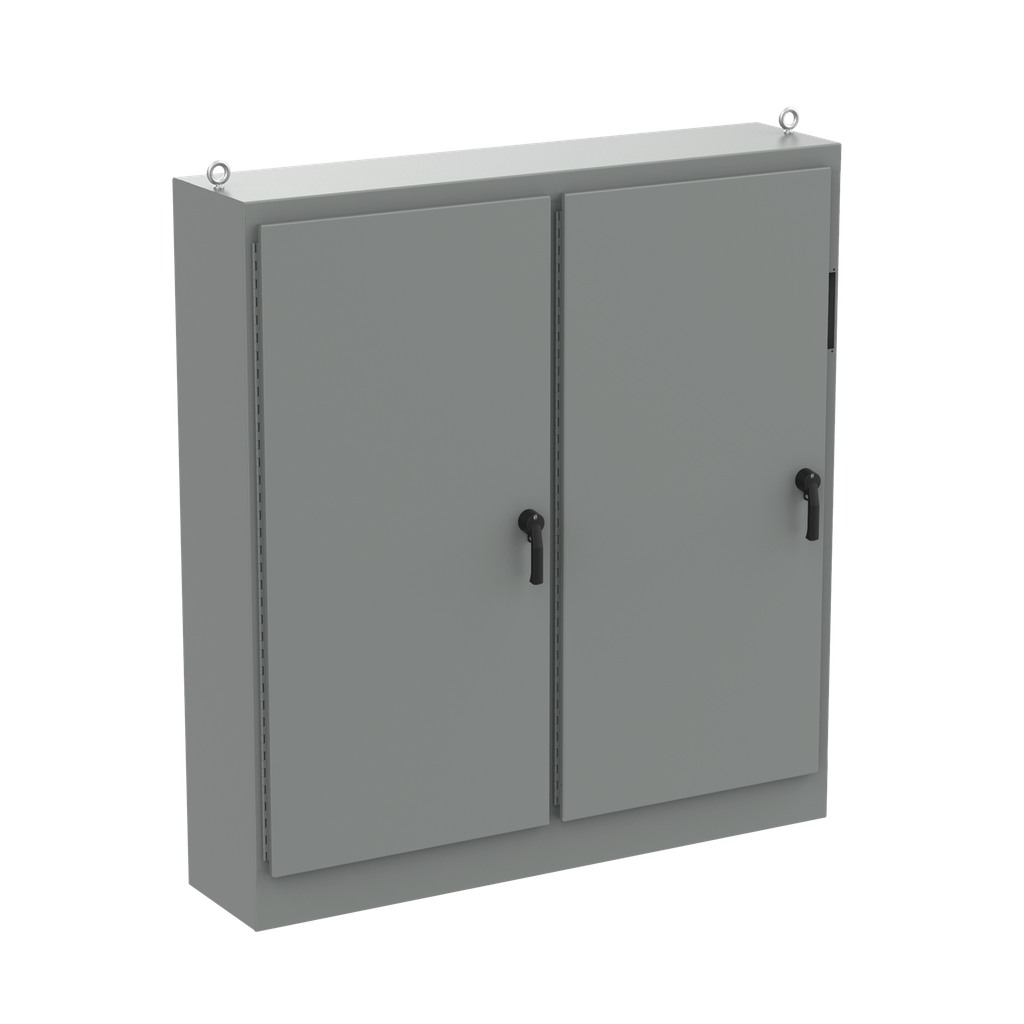

Product image for Hoffman A84XM7818FTCLP4 Free-Stand Disconnect with Quick-Release Hinge, Type 4, 84.12" x 78.5" x 18.12", Gray, Steel
Email

Hoffman A84XM7818FTCLP4 Free-Stand Disconnect with Quick-Release Hinge, Type 4, 84.12" x 78.5" x 18.12", Gray, Steel

Manufacturer: nVent Hoffman | Catalog # A84XM7818FTCLP4 | North Coast Part # 1097103
$13,912.17/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Simple, heavy-duty and cost-effective with easy door removal and re-installation, this disconnect enclosure can be ordered with one to three doors to fit a range of indoor and outdoor applications

Technical Information

Applications
Simple, Heavy Duty and Cost-Effective with Easy Door Removal and Re-installation, This Disconnect Enclosure Can Be Ordered with One To Three Doors To Fit A Range of Applications
Color Coding
ANSI 61
Cover Type
Quick-Release Continuous Hinge
IP Rating
66
Material
Steel
Mounting Type
Floor
Size
84.12 x 78.50 x 18.12 in
Type
Two Door, Free-Stand

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510278144
Color
ANSI 61 Gray
Finish
Powder Coated
GTiN
00783510278144
Product UPC
78351027814
Weight
1387100 lb

Dimensions

Depth
460 mm
Height
2137 mm
Length
90 Inch
Thickness
3.04 mm
Width
1994 mm
Features
  • Quick-release continuous hinge
  • Seams continuously welded and ground smooth
  • Body stiffeners in larger enclosures for extra rigidity
  • Body flange trough excludes liquids and contaminants
  • Heavy-duty lifting eyes anchor into reinforced top
  • Removable centerposts permit easy panel installation
  • Heavy-duty 3-point latching mechanism operated by padlocking handle on all doors
  • Ends of latch rods have rollers for easier door closing
  • Panel supports
  • Data pocket is high-impact thermoplastic
  • Oil-resistant gasket
  • Master door is far right-hand door on all enclosures
  • Defeater on primary door requires a screwdriver to open
  • Mechanical interlock activated by master door prevents slave doors from being opened first; doors can be closed in any order
  • Universal cutout on right flange provides mounting for most disconnect operators by using operator adapters
  • Models do not include panels. Painted or conductive panels sold separately.
  • Includes door hardware
