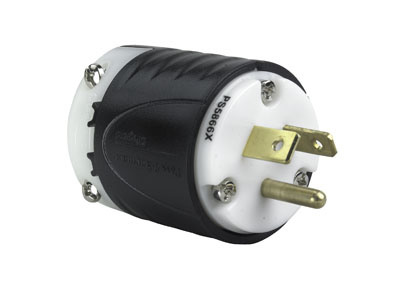

Pass & Seymour PS5866-X Straight Blade Plug, 2pole, 3way, 20A 277V

Manufacturer: Legrand / Pass & Seymour | Catalog # PS5866X | North Coast Part # 1097377
$59.71/ea
ea
Order in multiples of 10 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure
STR BLD PLUG 2P 3W 20A 277V

Technical Information

Amperage
20 Amp
Applications
Commercial
Conductor Size
18-10 AWG
Grade
Specification
Material
Nylon
NEMA
7-20P
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
3"
Type
Straight Blade
Voltage
277 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007044584
Color
Black
GTiN
00785007044584
Product UPC
78500704458
UNSPSC
39121402

Dimensions

Depth
1.752 Inch
Height
1.516 Inch
Length
1.752 Inch
Width
1.516 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Features
  • Unit arrives completely ready-to-wire, cuts installation time significantly.
  • Nylon housing provides impact and chemical resistance.
  • Rugged two-piece cord grip provides more uniform cord retention.
  • Internal dust shield keeps terminals free of contaminants.
  • Tri-drive assembly screws are standard on all Specification Grade plugs and connectors.
  • All 3-wire terminals located on the same plane, allows for quick wire termination from any angle.
  • Heavy-duty brass alloy blades and contacts, resist heat rise, provide excellent conductivity.
  • Cord-grip screws recessed to protect installer against screwdriver head slippage.
  • For covering patents, see www.legrand.us/patents.
Certifications
  • cULus Listed
  • Federal Spec Listed
