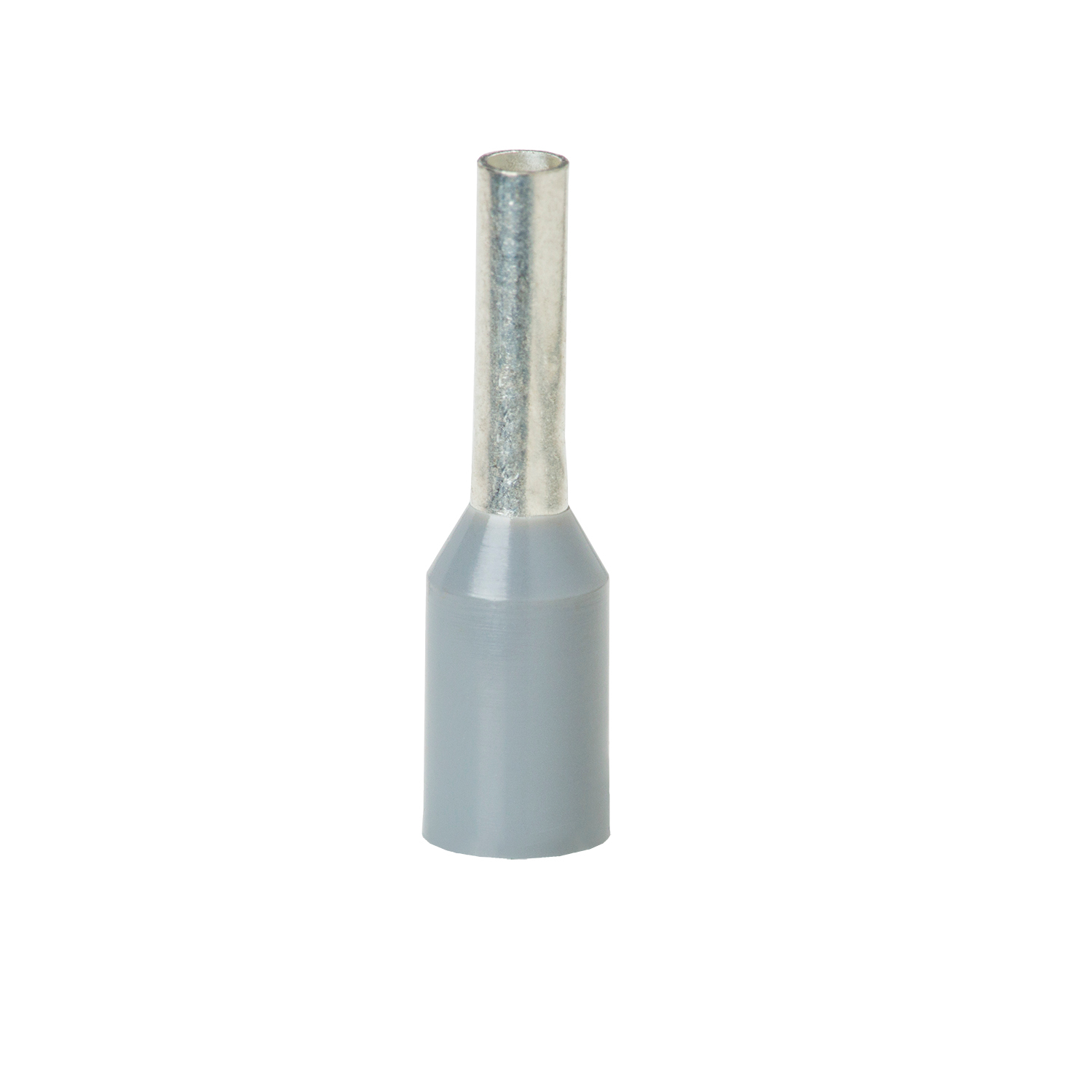

Thomas & Betts F2040 1.024 Inch Length 12 AWG 4 mm.. Wire Range Nylon Insulated Ferrule

Manufacturer: Thomas & Betts | Catalog # F2040 | North Coast Part # 1107
$226.78/c (100 ea)
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page

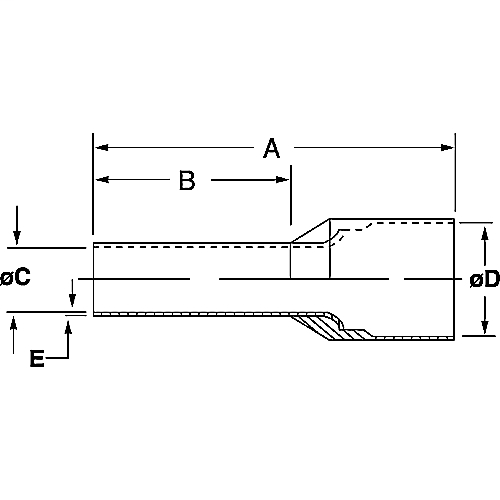

Polypropylene-Insulated Ferrule, Total Length 1.024 Inches/26mm, Pin Length .708 Inches/18mm, Pin Diameter .114 Inches/2.9mm, Base Diameter .189 Inches/4.8mm, Wire Range 12 AWG/4.00mm2, Color Gray, Copper, Tin Plated

Technical Information

Conductor Size
12 AWG
Contact Material
Copper
Insulation Type
Insulated Nylon
Material
Copper
Standard
UL E489056
Temperature Rating
105 degrees C
Type
Polypropylene Insulated Ferrule
Wire Size
12 AWG

Manufacturer Information

Brand
Thomas & Betts (T&B)
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210335445
Color
Gray
Finish
Electro Tin Plated
GTiN
05415022180657
Product UPC
78621033544

Dimensions

Inside Diameter
0.114 in
Outside Diameter
0.189 in
Overall Length
1.024 in
Features
  • Ferrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocks.
Notes
  • Ferrule dimensions conform to DIN 46228, Part 4.
