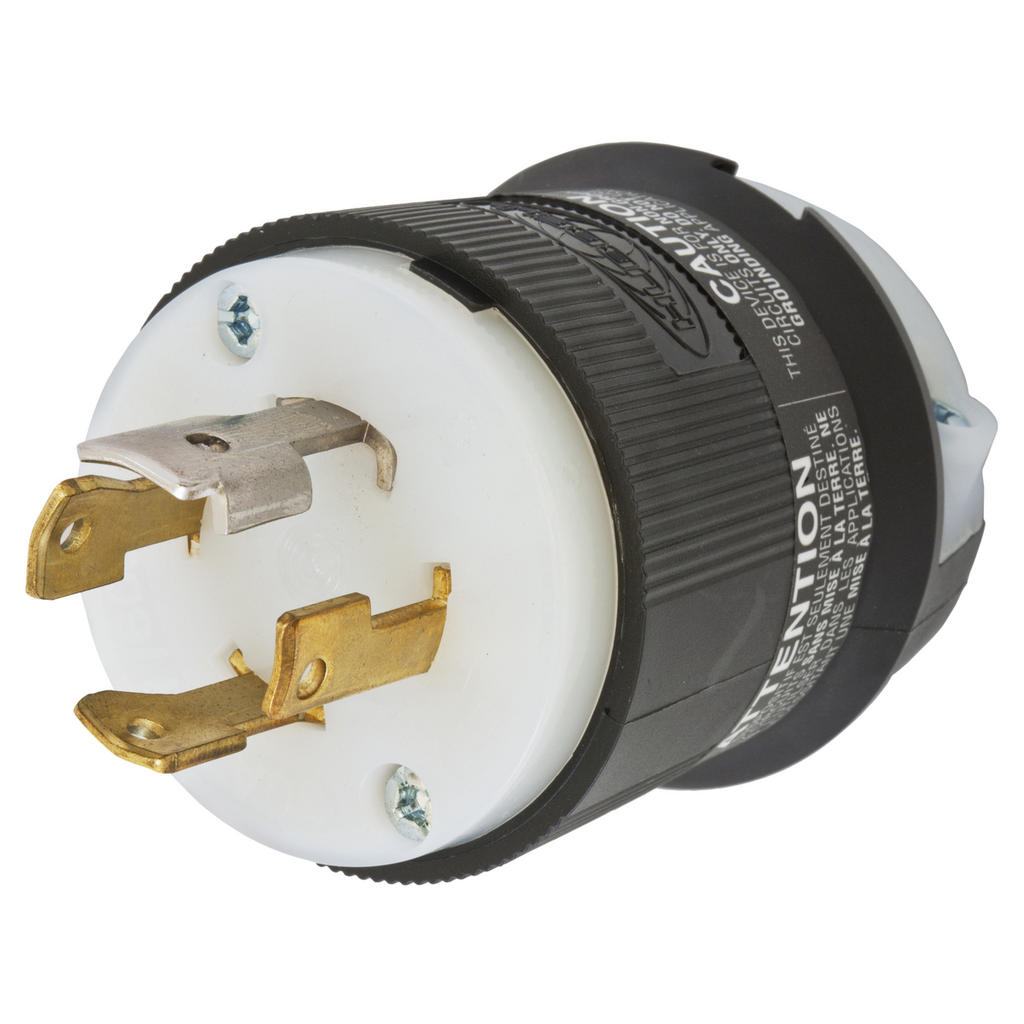

Product image for Hubbell HBL2771 30 Amp 347/600 VAC 4-Pole 4-Wire NEMA L20-30P Black and White Locking Plug
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Hubbell HBL2771 30 Amp 347/600 VAC 4-Pole 4-Wire NEMA L20-30P Black and White Locking Plug

Manufacturer: Hubbell / Kellems | Catalog # HBL2771 | North Coast Part # 11079
$107.92/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Industrial, Male Plug, 30A 3-Phase 347/600V AC, 4-Pole 4-Wire Non-Grounding, L20- 30P, Screw Terminal, Black and White

Technical Information

Amperage
30 Amp
Applications
Extra Heavy Duty Industrial
Conductor Size
16-8 AWG
Cord Type
All Listed Portables
Current
30 Amp
Material
Nylon
NEMA
L20- 30P
Number of Phases
3 Phase
Number of Poles
4-4 Pole
Number of Wires
4,4
Operating Temperature
-40 degrees C

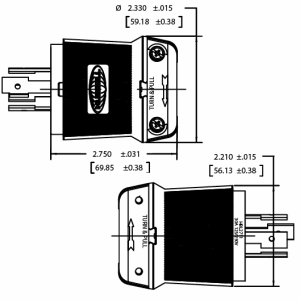

Size
2.33 in x 2.33 in x 2.75 in
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
TC Connection
Terminal Screws
Type
Plugs
Voltage
347/600 Volt
Wattage
18000 Watt
Wire Count
4
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Twist-Lock Devices

General Product Info

12-Digit UPC
783585039510
Color
Black,White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTiN
00783585039510
Product UPC
78358503951
Weight
0.35 lb

Dimensions

Height
2-3/4 Inch
Length
2.33 Inch
Width
2.33 in

Certifications and Compliance

Country of Origin
USA
Features
  • Ribbed nylon housing provides a secure grip and impact and chemical resistance.
  • Superior cord grip design protects terminations from excess strain.
  • Clear, funnel shaped wire entry for ease of termination.
  • Integral dust shield protects wiring chamber from dust or contaminants.
  • Standard Product
