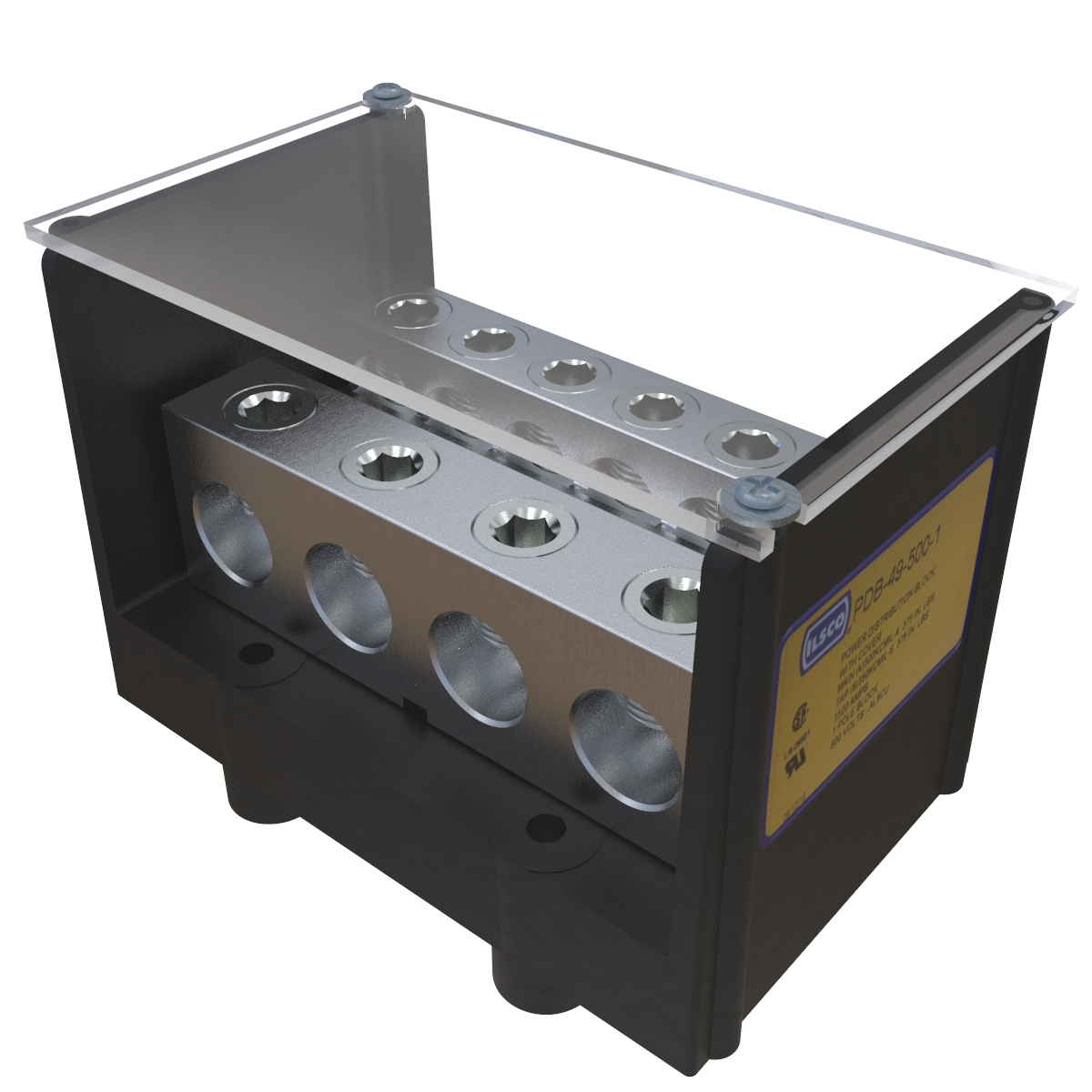

Product image for Ilsco PDB-49-500-1 Power Distribution Block, Dual Rated, Line Conductor Range 500-4, Load Range 350-6, 4/0-6, 4 Ports Per Pole Line Side, 9 Ports Per Pole Load Side, 1 Pole, UL, CSA, Includes Cover
Image thumbnail 0
Image thumbnail 1

Email

Ilsco PDB-49-500-1 Power Distribution Block, Dual Rated, Line Conductor Range 500-4, Load Range 350-6, 4/0-6, 4 Ports Per Pole Line Side, 9 Ports Per Pole Load Side, 1 Pole, UL, CSA, Includes Cover

Manufacturer: Ilsco | Catalog # PDB-49-500-1 | North Coast Part # 1108127

$685.65/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
ILSCO Power Distribution Block, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,mounting bolt/stud size 1/4 in, mounting hole spacing 3 in., UL 1059 Recognized, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 500 kcmil - 4 Str, Copper/Aluminum Secondary Conductor 350 kcmil - 6 Str, 4/0 Str - 6 Str, 13 conductors, Drive Type Main 3/8 Internal Hex, Drive Type Tap 5/16 Internal Hex, rated for 600 V, primary color Black, 1 poles, 4 ports per pole primary, 9 ports per pole secondary,

Technical Information

Amperage
1520 Amp/Pole
Applications
Tap Connector
Conductor Size
4 AWG-500 kcmil/6 AWG-350 kcmil/6-4/0 AWG
Connection Type
Screw
Enclosure
Valox
Material
Aluminum
Number of Conductors
13
Number of Poles
1 Pole
Standard
CSA,E2186,UL
TC Connection
Mechanical
Temperature Rating
90 degrees C
Type
PDB:PWR DIST BLK AL/CU
Voltage
600 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ClearChoice

General Product Info

12-Digit UPC
783669711509
Color
Black
Finish
Tin Plated
GTiN
00783669711509
Product UPC
78366971150
Used With
Copper or Aluminum Conductors
