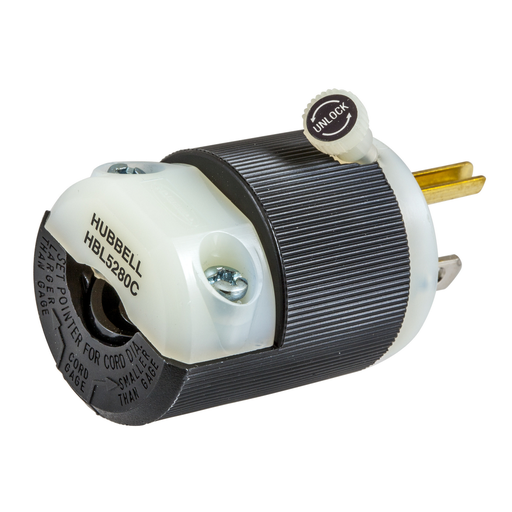

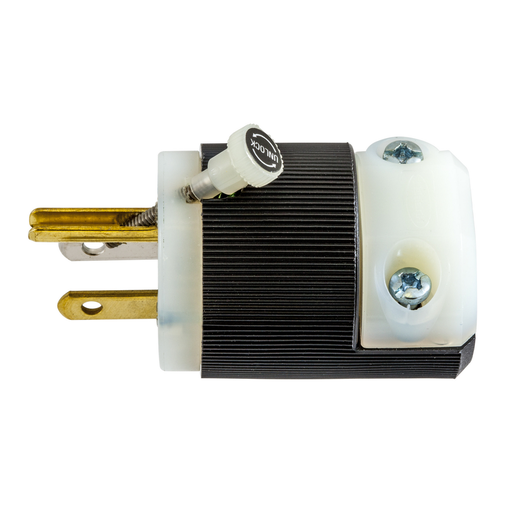

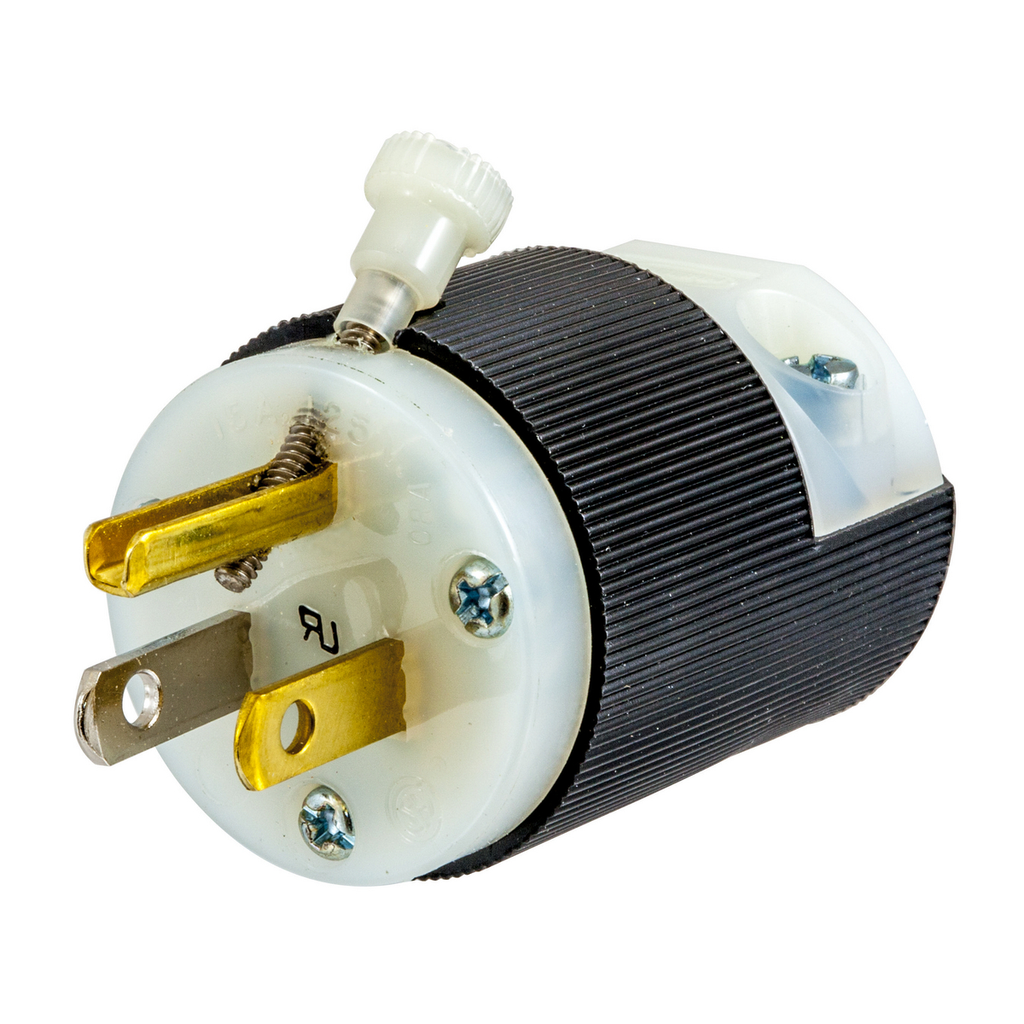

Product image for Hubbell HBL5280C 15 Amp 125 Volt 2-Pole 3-Wire NEMA 5-15P Black/White Nylon Straight Blade Plug
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

Hubbell HBL5280C 15 Amp 125 Volt 2-Pole 3-Wire NEMA 5-15P Black/White Nylon Straight Blade Plug

Manufacturer: Hubbell / Kellems | Catalog # HBL5280C | North Coast Part # 111053
$64.53/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page
Straight Blade Devices, Male Plug, Insulgrip Heavy Duty, Industrial/Commercial Grade, Straight, 2-Pole 3- Wire Grounding, 15A 125V, 5-15P, Black and White, Single Pack, With.

Technical Information

Amperage
15 Amp
Applications
Industrial/Commercial
Conductor Size
18-10 AWG
Cord Type
All Portable
Current
15 Amp
Horsepower
0.50 hp
Material
Polycarbonate
NEMA
5-15P
Number of Phases
1 Phase
Number of Poles
2-2 Pole
Number of Wires
3,3
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
NEMA® WD-6,UL,UL498 File E1706
Style
Standard
TC Connection
Terminal Screws
Type
Insulgrip
Voltage
125 Volt
Wattage
1875 Watt
Wire Count
3
Wire Size
18-10 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Straight Blade Devices

General Product Info

12-Digit UPC
783585173658
Color
Black,White
Environmental Conditions
Indoor Dry unless protected by additional means
GTiN
00783585173658
Product Series
Insulgrip
Product UPC
78358517365
Weight
0.15 lb

Dimensions

Height
1.96 Inch
Length
1.52 Inch
Width
1.52 in

Certifications and Compliance

Country of Origin
USA
Features
  • Ribbed nylon housing is impact and chemical resistant
  • VARI-SIZE adjustable cord clamp
  • Fast lead assembly screws
  • Beveled housing prevents snagging
