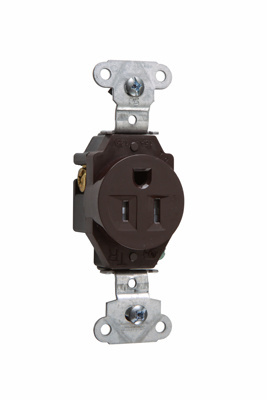

Product image for Pass & Seymour TR5251 15 Amp 125 VAC 2-Pole 3-Wire NEMA 5-15R Brown Nylon Face Tamper-Resistant Single Receptacle
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Pass & Seymour TR5251 15 Amp 125 VAC 2-Pole 3-Wire NEMA 5-15R Brown Nylon Face Tamper-Resistant Single Receptacle

Manufacturer: Legrand / Pass & Seymour | Catalog # TR5251 | North Coast Part # 1111600
$10.23/ea
ea
Order in multiples of 10 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure
Tamper-Resistant Construction Spec Grade Single Receptacles, Back and Side Wire, 15A, 125V

Technical Information

Amperage
15 Amp
Applications
Commercial
Capacity
Single
Conductor Size
14-10 AWG
Connection Type
Back Wire,Side Wire
Dielectric Strength
2000 V
Grade
Construction
Material
Nylon
NEMA
5-15R
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
1.296 L x 1.190 W x 3.28 H In
TC Connection
Back and side wire
Temperature Rating
-40 degrees C
Type
Single Receptacles
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007241990
Color
Brown
GTiN
00785007241990
Product UPC
78500724199
UNSPSC
39121406

Dimensions

Depth
1.19 Inch
Height
3.28 Inch
Width
1.38 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
Mexico
Certifications
  • cULus Listed
Features
  • Dual mechanical shutter system to help prevent insertions of foreign objects.
  • Corrosion-resistant, plated and tabbed steel strap locked in to face and back body to resist pulling away from face/body assembly.
  • .032 inch thick brass triple-wipe power contacts for lasting retention.
  • Corrosion-resistant plated steel strap is locked in to the face and back body to resist pulling away from the face/body assembly.
  • Auto-ground clip assures positive ground.
  • Easily accessed break-off line-contact connecting tab for fast and easy split-circuitwiring.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
