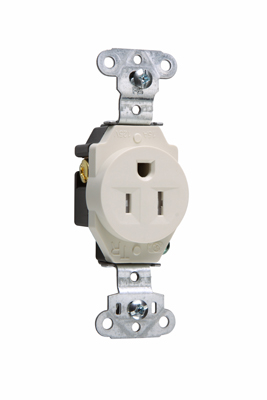

Pass & Seymour TR5251LA 15 Amp 125 VAC 2-Pole 3-Wire NEMA 5-15R Light Almond Nylon Face Tamper-Resistant Single Receptacle

Manufacturer: Legrand / Pass & Seymour | Catalog # TR5251LA | North Coast Part # 1111603
$10.09/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Auburn Closes 3:00pm PT
0 available

For Delivery

Not in local stock *
Check another branch
*Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure
Tamper-Resistant Construction Spec Grade Single Receptacles, Back and Side Wire, 15A, 125V

Technical Information

Amperage
15 Amp
Capacity
Single
Connection Type
Back and Side Wired
Grade
Specification
NEMA
5-15R
Number of Poles
2 Pole
Number of Wires
3 Wire
Type
Tamper-Resistant
Voltage
125 Volt

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007241983
Color
Light Almond
GTiN
00785007241983
Product UPC
78500724198
UNSPSC
39121406

Dimensions

Depth
1.19 Inch
Height
3.28 Inch
Width
1.38 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
Mexico
Features
  • Dual mechanical shutter system to help prevent insertions of foreign objects.
  • Corrosion-resistant, plated and tabbed steel strap locked in to face and back body to resist pulling away from face/body assembly.
  • .032 inch thick brass triple-wipe power contacts for lasting retention.
  • Corrosion-resistant plated steel strap is locked in to the face and back body to resist pulling away from the face/body assembly.
  • Auto-ground clip assures positive ground.
  • Easily accessed break-off line-contact connecting tab for fast and easy split-circuitwiring.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Certifications
  • cULus Listed
