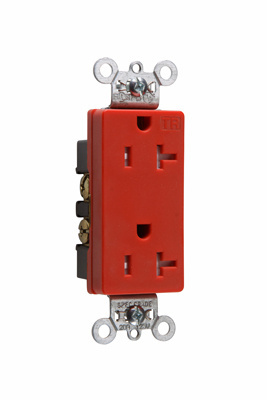

P&S TR26362RED TR DECO RECEP 20A 12

Manufacturer: Legrand / Pass & Seymour | Catalog # TR26362RED | North Coast Part # 1114004
$21.37/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
Usually ships within 11 to 17 days
Specification Sheet Brochure
Tamper-Resistant Heavy-Duty Decorator Spec Grade Duplex Receptacle Back & Side Wire 20amp 125volt BrownFor detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.

Technical Information

Amperage
20 Amp
Applications
commercial
Capacity
Duplex
Duty Rating
Heavy Duty
Grade
Federal Specification
Material
Thermoplastic
NEMA
5-20R
Number of Phases
3 Phase
Number of Poles
2 Pole
Number of Wires
3.0
Size
5.13x2x1.4
Style
Decorator
Type
Receptacles
Voltage
125 Volt
Wire Size
10-14 Awg

Manufacturer Information

Family Brand Name
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

Color
Red
GTiN
00785007277371
Product UPC
78500727737
UNSPSC
39121406

Dimensions

Depth
0.833 Inch
Height
3.281 Inch
Width
1.322 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Certifications
  • Federal Spec Listed
  • Two back wire holes for additional wiring flexibility.
  • Auto-ground clip assures positive ground.
  • Dual mechanical shutter system to help prevent insertion of foreign objects.
  • Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest.
  • Backed-out tri-drive brass terminal screws for faster installation.
  • Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
  • .032 inch thick brass triple-wipe power contacts.
  • Internal screw-pressure-plate back and side wire capability.
  • Corrosion-resistant plated steel strap is locked in to face and back body to resist pulling away from the face/body assembly.
