Hubbell HBL12SP PANEL SW, SPDT, SPADE TERM

Manufacturer: Hubbell / Kellems | Catalog # HBL12SP | North Coast Part # 1119
$17.50/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page
Switches and Lighting Controls, Commercial Grade, Panel Mount and Specialty Switches, Bat Handle Switches, Single Pole Double Throw, 10A 250V/10A 125V, Spade Terminals,

Technical Information

Action
On/On
Actuator
Bat Handle
Amperage
20 Amp
Applications
On/On
Contact Configuration
SPDT
Contact Rating
As Indicated
Current
10 Amp
Grade
Commercial
Horsepower
0.75 hp
Indicator
Comes with Indicator Plate
Interrupt Rating
10, 20 AIC
Material
Thermoplastic
Number of Poles
1 Pole
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
UL
Style
Spade Terminal
Switch Type
Single Pole
TC Connection
Spade Terminal
Type
General Purpose, Standard, Heavy Duty, 2-Position
Voltage
250/125 Volt
Wattage
2500 Watt

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Panel Mount Switches

General Product Info

12-Digit UPC
783585016757
Color
Metallic
GTiN
00783585016757
Product Series
Single Pole/Double Throw
Product UPC
78358501675
Weight
0.1 lb

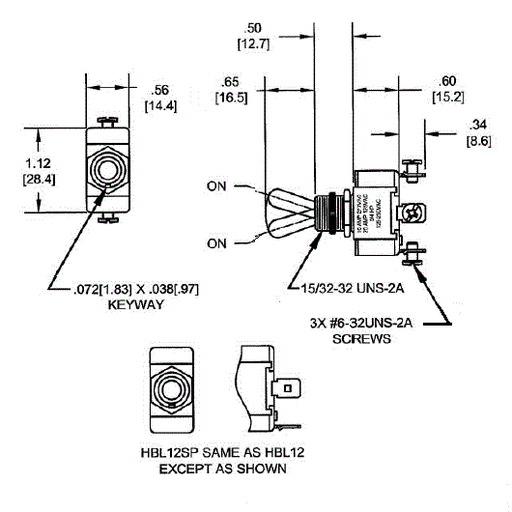

Dimensions

Height
1.12 Inch
Length
2.09 Inch
Width
0.500 in

Certifications and Compliance

Country of Origin
China
Features
  • Nickel Plated for Corrosion Resistance
