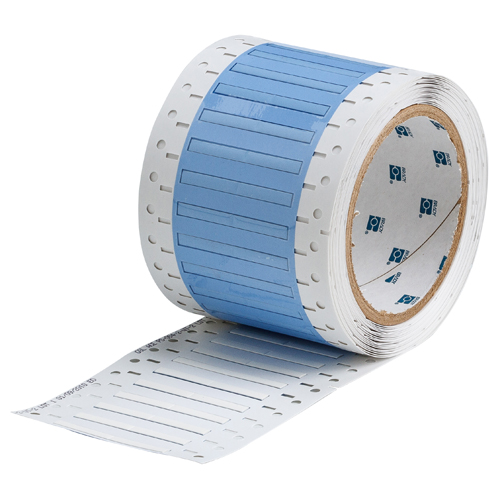

Product image for Brady PS-094-2-WT-2 PermaSleeve Polyolefin Wire Marking Sleeves, White, 0.094" Dia x 1" W, Roll of 5000 Each
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

Brady PS-094-2-WT-2 PermaSleeve Polyolefin Wire Marking Sleeves, White, 0.094" Dia x 1" W, Roll of 5000 Each

Manufacturer: Brady | Catalog # PS-094-2-WT-2 | North Coast Part # 1131897
$1,629.00 /ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
CA Prop65 Warning CA Prop65 Warning Specification Sheet
PermaSleeve® PS Heat-Shrink Polyolefin (B-342) wire marking sleeves combine speed, ease of use, and permanence to create long-lasting, high quality identification.

Technical Information

Applications
Cable & Wire Marking
Conductor Size
28-20 AWG
Material
Polyolefin
Max Operating Temperature
275 F
Max Temperature
135 degrees C
Min Operating Temperature
-67 F
Min Temperature
-55 degrees C
Shrink Ratio
3:1
Type
Heat Shrink Tubing
Wire Size
28-20 AWG

Manufacturer Information

Brand
Brady Corporation
Sub Brand
PermaSleeve®

General Product Info

12-Digit UPC
662820022282
Color
White
Finish
Matte
GTiN
00662820022282
Product UPC
66282002228
Qty per Row
2
Shape
Rectangle

Dimensions

Diameter
0.094 Inch
Height
0.182 Inch
Roll Width
2 in
Width
25.40 mm

Certifications and Compliance

CA Prop65 Warning
Y
Features
  • 3:1 heat shrinkable sleeve fit snugly around wires for maximum insulation protection and permanent identification
  • Fade-resistant and smudge-proof for superior aesthetic appearance
  • Cold resistant and flame-retardant with an operating temperature of -67°F to 275°F (-55°C to 135°C)
  • Meets SAE-AMS-DTL-23053/5C (Class 1), SAE-AS-81531, MIL-STD-202;RoHS Compliant;and UL Recognized
