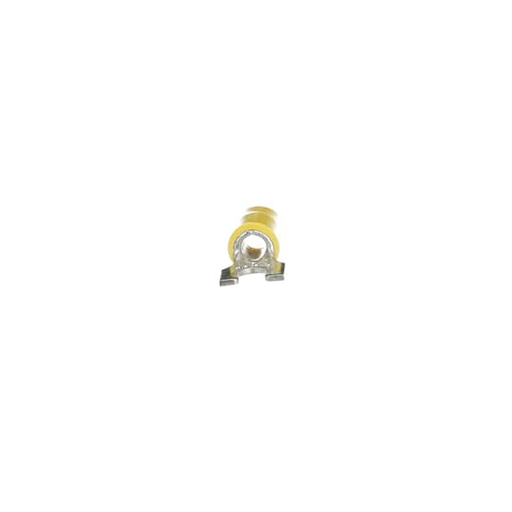

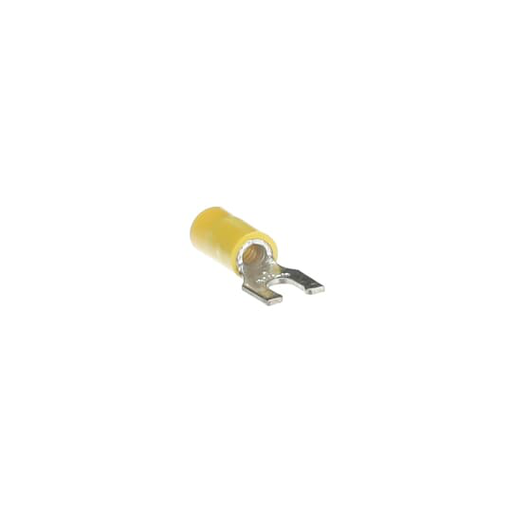

Thomas & Betts 10RC-8FL 12-10 AWG Wire Range #8 Bolt Hole Yellow Insulated Vinyl Locking Fork Terminal

Manufacturer: Thomas & Betts | Catalog # 10RC-8FL | North Coast Part # 113815
$360.36/c (100 ea)
ea
Order in multiples of 50 (pack qty)
Log in or register to view your price, purchase history, and more!
100 available

For Pick Up

at Auburn Opens Thursday 4:00am PT
100 available

For Delivery

Order by Thursday 4:00pm PT for delivery Friday
Not in local stock *
Check another branch
Specification Sheet Brochure Product Catalog Page
Vinyl-Insulated Locking Fork Terminal, Length 1.09 Inches, Width .37 Inches, Maximum Insulation .220, Bolt Hole #8, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated

Technical Information

Conductor Size
12-10 AWG
Flamability Class
Rated V-0 Per UL94
Insulation Material
PVC
Insulation Type
Insulated Vinyl
Material
Copper
Standard
UL E9809
Stud Size
#8
Temperature Rating
105 degrees C
Terminal Type
RC
Type
Locking, Short Sleeve
Voltage
600 Volt
Wire Size
12-10 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210807249
Color
Yellow
Finish
Tin Plated
GTiN
05414363136347
Product UPC
78621080724
Used With
Round Conductors

Dimensions

Height
1.2 Inch
Thickness
.04 in
Width
1.2 in
Certifications
  • CSA
  • UL
Features
  • Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring.
