Thomas & Betts 10RC-8FX 12-10 AWG Wire Range #8 Bolt Hole Yellow Expanded Insulated Vinyl Fork Terminal

Manufacturer: Thomas & Betts | Catalog # 10RC-8FX | North Coast Part # 113895
$387.62/c (100 ea)
ea
Order in multiples of 50 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page
Expanded Vinyl-Insulated Fork Terminal, Length 1.11 Inches, Width .38 Inches, Maximum Insulation .250, Bolt Hole #8, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated

Technical Information

Barrel Type
Brazed Seam
Conductor Size
12-10 AWG
Flamability Class
Rated V-0 Per UL94
Insulation Material
PVC
Insulation Type
Expanded Insulated Vinyl
Material
Copper
Standard
UL E9809
Stud Size
#8
Temperature Rating
105 degrees C
Terminal Type
RC
Type
Expanded
Voltage
600 Volt
Wire Size
12-10 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210800400
Box Quantity
250
Color
Yellow
Finish
Tin Plated
GTiN
05414363935681
Product UPC
78621080040

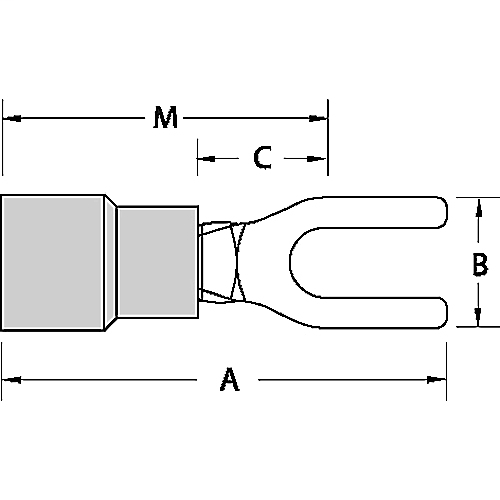

Dimensions

Height
7 Inch
Length
1.11 Inch
Thickness
.04 in
Width
8.9 in
Features
  • Fork teminals allow easy installation since the mounting screw does not have to be completely removed.
  • These terminals have expanded insulation support which means a wider wire entry to accommodate heavy wall insulation.
  • Application Tools: WT145C, WT2000, WT112M, ERG4001
  • Alternate Package Qty: RC1147-250
