Red Dot IH3-2-LM 1-Gang Weatherproof Metallic Device Box, (3) 3/4" Hubs, 2" Deep

Manufacturer: Thomas & Betts / Red Dot | Catalog # IH3-2-LM | North Coast Part # 114578
$1,594.50/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
270 available

For Pick Up

at Auburn Closes 3:00pm PT
270 available

For Delivery

Order by 4:00pm PT for delivery tomorrow
Not in local stock *
Check another branch
Specification Sheet Product Catalog Page
Single Gang Universal Weatherproof Box, 18.3 Cubic Inches, Hub Size 3/4 Inch, Silver, Aluminum, 3 Outlets, One on Top, Bottom, and Back, with Mounting Lugs

Technical Information

Applications
Dry-tite boxes and covers protect wiring devices, switches, electronic components and terminal blocks in dry, damp and wet locations
Material
Aluminum
Number of Gangs
1 Gang
Standard
UL E28688
Type
Device Boxes, Covers & Accessories

Manufacturer Information

Brand
Red Dot

General Product Info

12-Digit UPC
042269392250
Color
Silver
Finish
Powder Coated
GTiN
00042269392250
Product UPC
04226939225

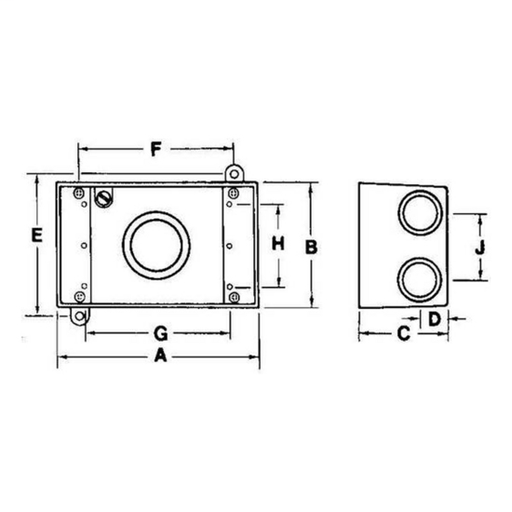

Dimensions

Height
10-3/4 Inch
Width
9-3/4 in
Features
  • Securely fastened mounting plates reduce costly call backs
  • Alloy A380 aluminum, certified zinc alloy and stainless steel springs provide increased corrosion resistance
  • Convenient mounting lugs for a variety of mounting methods
  • Precision cast and machined surfaces permit safer wire pulling.
  • Die Cast construction and industrial design combine to produce a rugged protective enclosure for devices.
  • Clear UL and cubic content markings speed approval by inspectors
  • Clean cover edges provide good gasket sealing.
Application
  • Accessible wiring chamber provides a convenient location to maintain or change a system, pull conductors and make splices
  • Junction box for branch conduits
  • Dry-tite boxes and covers protect wiring devices, switches, electronic components and terminal blocks in dry, damp and wet locations
Notes
  • Rain tight when used with appropriate Red Dot covers.
Certifications
  • UL
