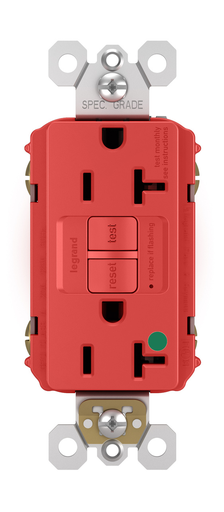

Pass & Seymour 2097-HGRED 20 Amp 125 VAC 2-Pole 3-Wire NEMA 5-20R Red Thermoplastic Self-Test Duplex GFCI Receptacle

Manufacturer: Legrand / Pass & Seymour | Catalog # 2097HGRED | North Coast Part # 1148677
$46.05/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
20 available

For Delivery

Order by 4:00pm PT for delivery Monday
Not available for delivery*
Check your local branch
Specification Sheet Brochure
Conducts an automatic test every three seconds, ensuring it's always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven SafeLock&trade- Protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected.

Technical Information

Actuator
Control Circuit
Amperage
20 Amp
Applications
Commercial, Residential Use
Blade Dimensions
1.03 in L x 1.73 in W x 4.2 in H
Connection Type
Back and Side Wired
Grade
Hospital
Interrupt Rating
4 to 6 mA
Material
Thermoplastic
Number of Poles
2 Pole
Operating Temperature
-35C to +66C
TC Connection
Back and Side Wire
Temperature Rating
-35 to 66 C
Trip Range
4 to 6 mA
Trip Type
.025 Second Nominal
Type
Hard Use
Voltage
125 Volt

Manufacturer Information

Family Brand Name
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

Color
Red
Environmental Conditions
95% Relative Humidity
GTiN
00785007035971
Product UPC
78500703597

Dimensions

Height
4.2 Inch
Length
1.03 Inch
Width
1.73 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
China
Certifications
  • cULus Listed
