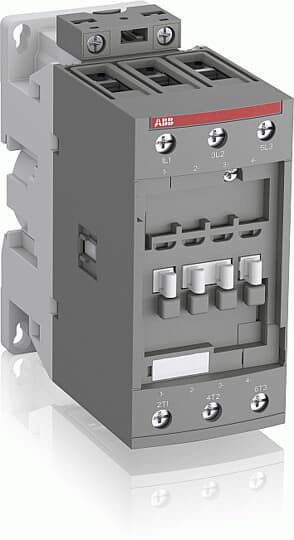

ABB AF52-30-00-13 CTR,3P,54A,100-25

Manufacturer: ABB Inc. | Catalog # AF52-30-00-13 | North Coast Part # 1149189
$220.76/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
4 available

For Delivery

Order by Saturday 4:00pm PT for delivery tomorrow
Out of stock, call for availability
Specification Sheet Brochure Product Catalog Page
3 pole, 80 amp across the line contactor with 100-250V AC/DC coil and no auxiliary contacts

Technical Information

Amperage
80 Amp
Applications
For Controlling Single and 3-Phase Motors and Switching Power Circuits
Blade Dimensions
55 mm W x 111 mm D x 125.5 mm H
Coil Voltage
100 - 250 VAC/VDC
Contact Configuration
3 NO Main
Mounting Type
Front and Side
Number of Poles
3 Pole
Operating Temperature
80 C
Power Rating
15 kW at 220/230/240 V, 22 kW at 380/400 V, 30 kW at 415/440/500/690 V
Size
55x125.5x111mm
Temperature Rating
-25 to 60 C
Terminal Type
Screw Terminals
Type
Contactors
Voltage
690 Volt

Manufacturer Information

Family Brand Name
Thomas & Betts

General Product Info

Environmental Conditions
-60 to 80 C Storage Temperature
GTiN
03471523132337
Product UPC
71523132337
