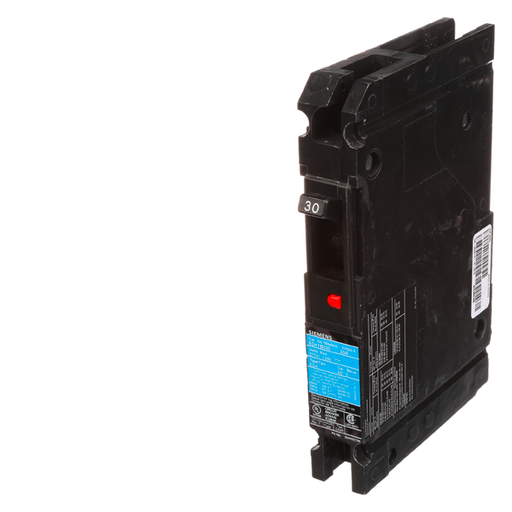

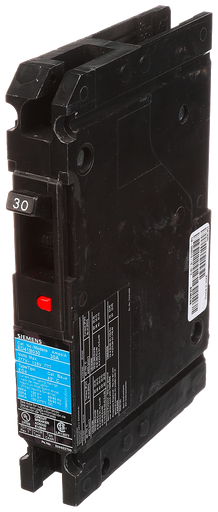

Siemens ED41B030 1-Pole 30 Amp 277 VAC 22 kA Circuit Breaker Lug

Manufacturer: Siemens | Catalog # ED41B030 | North Coast Part # 115085
$955.23/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP UNIT. STANDARD 40 DEG C BREAKER ED FRAME WITH STANDARD BREAKING CAPACITY. 30A 1-POLE (22KAIC AT 277V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES: LOAD LUGS ONLY (LD1E060) WIRE RANGE 10 - 4AWG (CU/AL). DIMENSIONS (W x H x D) IN: 1.00 x 6.4 x 3.92.

Technical Information

Actuator
Varying
Amperage
30 Amp
Applications
Standard 40C Breaker
Current
30 Amp
Enclosure
Varying
Frame
ED
Frequency
50/60 Hz
Interrupt Rating
22 kAIC
Load Rating
N/A
Number of Poles
1 Pole
Operating Temperature
40C
Standard
HACR
TC Connection
N/A
Trip Range
N/A
Trip Type
Thermal-Magnetic
Type
ED4
Voltage
277 Volt

Manufacturer Information

Brand
Siemens Canada
Sub Brand
Sentron

General Product Info

12-Digit UPC
783643209114
GTiN
00783643209114
Product UPC
78364320911
Weight
1.133 lb

Dimensions

Height
6 Inch
Length
5 Inch
Width
1.000 in

Certifications and Compliance

Country of Origin
Mexico
