Lutron SCR-20-GFST-BI SC 20A GFCI SELF

Manufacturer: Lutron | Catalog # SCR-20-GFST-BI | North Coast Part # 1154430
$199.72/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Self-testing technology allows GFCI to automatically check proper operation every 30 seconds. LEDs indicate status of GFCI protection function. Press reset button to reset GFCI after circuit interruption. Wallplate sold separately.

Technical Information

Amperage
20 Amp
Conductor Size
12-10 AWG
Connection Type
Screw-Type Terminals
Insulation Material
Plastic
Material
Metal
Mounting Type
Wall Box
NEMA
5-20R
Number of Poles
2 Pole
Number of Wires
3,4,5 Wire
Size
75 in
Standard
CSA,NOM,UL
TC Connection
Screw terminal
Temperature Rating
0 degrees C to 40 degrees C
Type
Designer, Self-Test
Voltage
125 Volt
Wattage
2500 Watt
Wire Size
10 AWG

Manufacturer Information

Brand
Lutron Electronics Company
Sub Brand
Designer

General Product Info

12-Digit UPC
784276158718
Color
Biscuit
Environmental Conditions
0 - 90 PCT
Finish
Satin
GTiN
00784276158718
Product UPC
78427615871

Certifications and Compliance

Country of Origin
China
Features

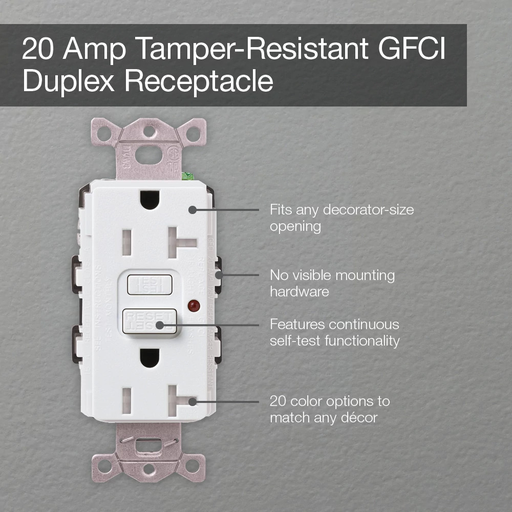

  • Includes (1) Tamper-Resistant GFCI Duplex Receptacle; Satin Finish
  • 20 A capacity
  • 125V only (US style wall box)
  • Tamper resistant shutter mechanism
  • Continuous self-test functionality automatically checks every 30 seconds to ensure the unit is functioning properly
  • Manual test/reset buttons
  • Features screw terminal and push in connections for easy installation
  • LED indicator light for GFCI status
  • Coordinates with decorator-style dimmers and switches
  • Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately)
  • Self-testing technology allows GFCI to automatically check proper operation every 30 seconds
  • LEDs indicate status of GFCI protection function
  • Press reset button to reset GFCI after circuit interruption
  • Wallplate sold separately.
Standards and Certifications
  • UL
  • CSA
  • NOM
