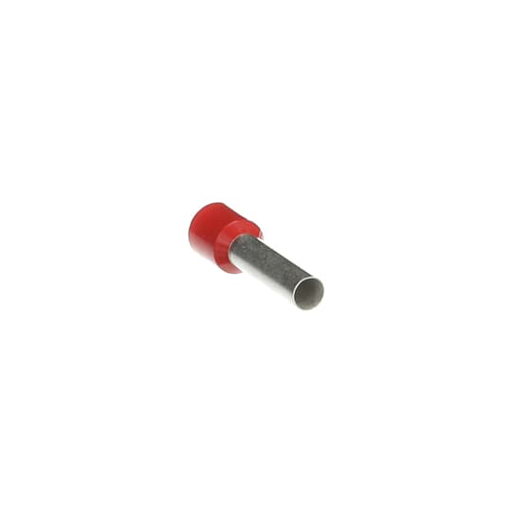

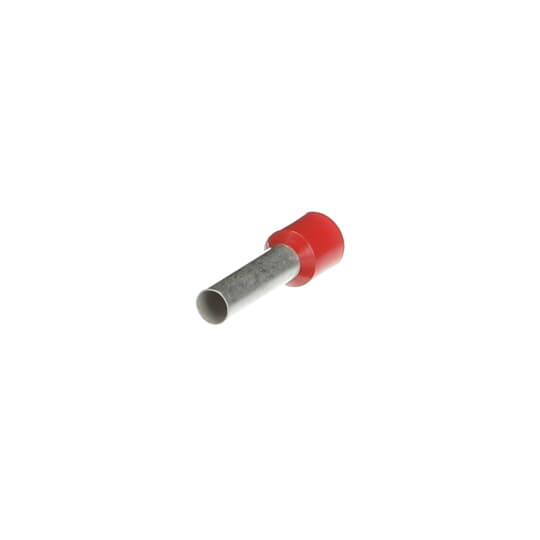

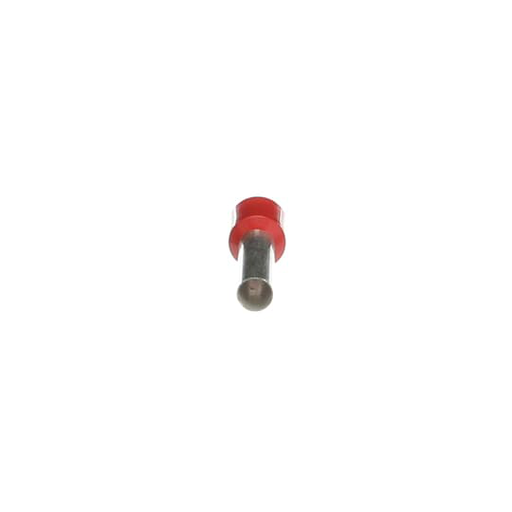

Product image for Thomas & Betts F2044 8 AWG Red 1.063 Inch Electrotinned Copper Nylon Insulated Ferrule
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

Thomas & Betts F2044 8 AWG Red 1.063 Inch Electrotinned Copper Nylon Insulated Ferrule

Manufacturer: Thomas & Betts | Catalog # F2044 | North Coast Part # 1160
$272.14/c (100 ea)
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page
Polypropylene-Insulated Ferrule, Total Length 1.063 Inches/27mm, Pin Length .708 Inches/18mm, Pin Diameter .181 Inches/4.6mm, Base Diameter .295 Inches/7.5mm, Wire Range 8 AWG/10.00mm2, Color Red, Copper, Tin Plated

Technical Information

Conductor Size
8 AWG
Contact Material
Copper
Insulation Type
Insulated Nylon
Material
Copper
Standard
UL E489056
Strip Length
18 mm
Temperature Rating
105 degrees C
Type
Polypropylene Insulated Ferrule
Wire Size
8 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210335483
Color
Red
Finish
Electro Tin Plated
GTiN
05415022180664
Product UPC
78621033548

Dimensions

Overall Length
1.063 in
Features
  • Ferrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocks.
Notes
  • Ferrule dimensions conform to DIN 46228, Part 4.
