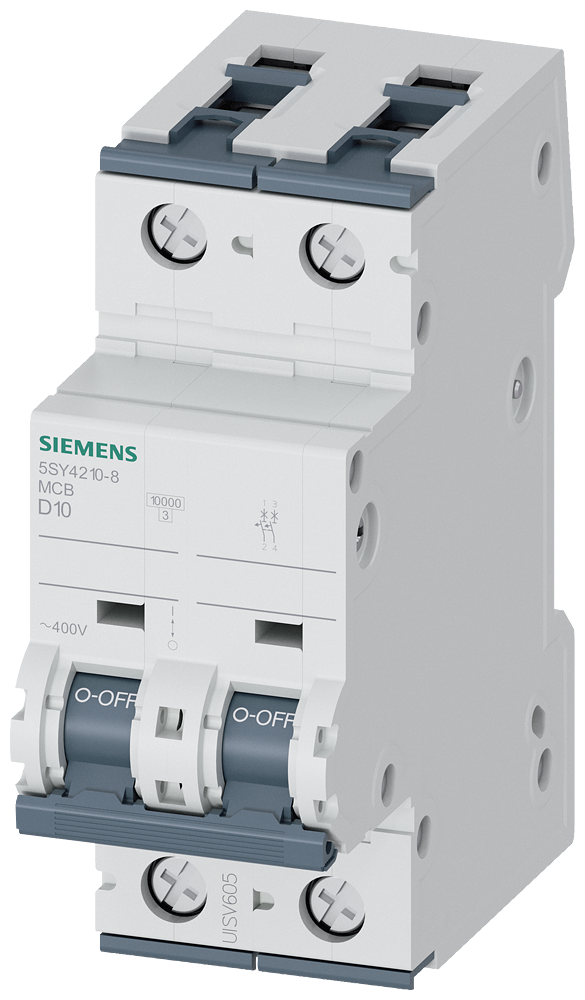

Product image for Siemens 5SY42108 5SY4 MCB, 2P,48
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Siemens 5SY42108 5SY4 MCB, 2P,48

Manufacturer: Siemens | Catalog # 5SY4210-8 | North Coast Part # 1160203
$104.18/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
SUPPLEMENTARY PROTECTOR,2P,10A,CURVE D Supplementary Protector, UL1077 Rated, IEC Mini Circuit Breaker, 2 Pole, 10 Amps, 480 VAC, Trip Characteristic Curve D, 36mm Width,70mm Depth, UL File E116386 in Vol. 1 Sec. 2

Technical Information

Amperage
10 Amp
Applications
SUPPLEMENTARY PROTECTION
Connection Type
Identical Wire Screw Connections On Line And Load Side.
Current
10 AMP
Frequency
50 Hz
Interrupt Rating
5 kAIC
Material
Thermoplastic
Mounting Type
DIN RAIL
Number of Poles
2 Pole
Short Circuit Current
5 kA
Standard
CSA 22.2 NO. 235,CE,EN 60 898,UL 1077,IEC,EN 60 947-2
TC Connection
Identical wire screw connections on line and load side.
Type
Miniature Circuit Breaker
Voltage
400 Volt

Manufacturer Information

Brand
Siemens Canada
Sub Brand
SENTRON

General Product Info

12-Digit UPC
754554780016
Class
D
GTiN
04001869202266
Product UPC
75455478001
Weight
0.660 lb

Dimensions

Height
3.2 Inch
Length
3.7 Inch
Width
1.600 in

Certifications and Compliance

Country of Origin
Germany

Certifications & Compliance

Green Distribution CO2
0.028 kg
Green End-of-Life CO2
0.319 kg
Green Manufacturing CO2
1.111 kg
Green Total CO2
13.126 kg
Green Transport-to-DC CO2
0.233 kg
Green Use-Phase CO2
11.435 kg
