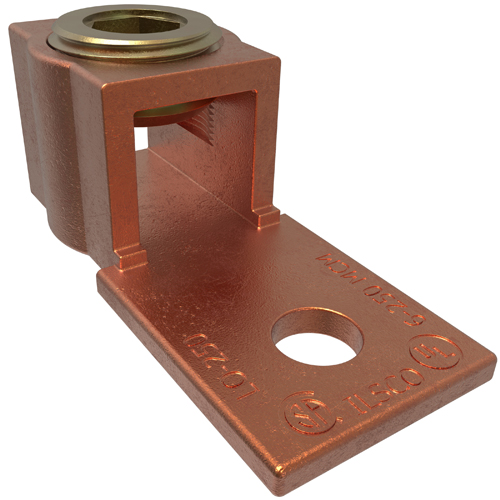

Product image for Ilsco LO-250 Copper Mechanical Lug, Conductor Range 250-6, 1 Port, 1 Hole, 3/8in Bolt Size, Seamless, UL, CSA
Image thumbnail 0
Image thumbnail 1
Email

Ilsco LO-250 Copper Mechanical Lug, Conductor Range 250-6, 1 Port, 1 Hole, 3/8in Bolt Size, Seamless, UL, CSA

Manufacturer: Ilsco | Catalog # LO-250 | North Coast Part # 116491
$70.41/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
ILSCO Mechanical Lug, One Conductor, Mechanical connection, Copper material, 1 mounting hole(s), mounting bolt/stud size 5/16 in, UL 486A/B Listed, C22.2 No. 65-03, Copper Primary Conductor 250 kcmil - 6 Str, 1 conductors, 1 ports/wireways, Drive Type Main 3/8 Internal Hex, rated for 35 kV, primary color Copper, 1 poles,

Technical Information

Applications
For use in Circuits Rated 35 kV or Less, Proper High Voltage Spacing and Insulation Techniques must be used for Copper Conductor Only
Bolt Size
5/16 in
Conductor Material
Copper
Conductor Size
6 AWG-250 kcmil
Conductor Type
Copper
Connection Type
Mechanical
Direct Burial?
No
Material
Copper
Mounting Hole Size
0.328 in
Number of Conductors
1
Number of Holes
1 Hole
TC Connection
Mechanical
Temperature Rating
90 degrees C
Type
LO:1&2 HOLES STRAIGHT
Voltage
35 Volt

Packaging

Pkg Qty
25

Manufacturer Information

Brand
Ilsco
Sub Brand
ClearChoice

General Product Info

12-Digit UPC
783669569834
Color
Copper
Finish
Electrolytic
GTiN
00783669569834
Product UPC
78366956983
Weight
0.196 lb

Dimensions

Height
0.88 Inch
Length
2.275 Inch
Width
0.985 in
