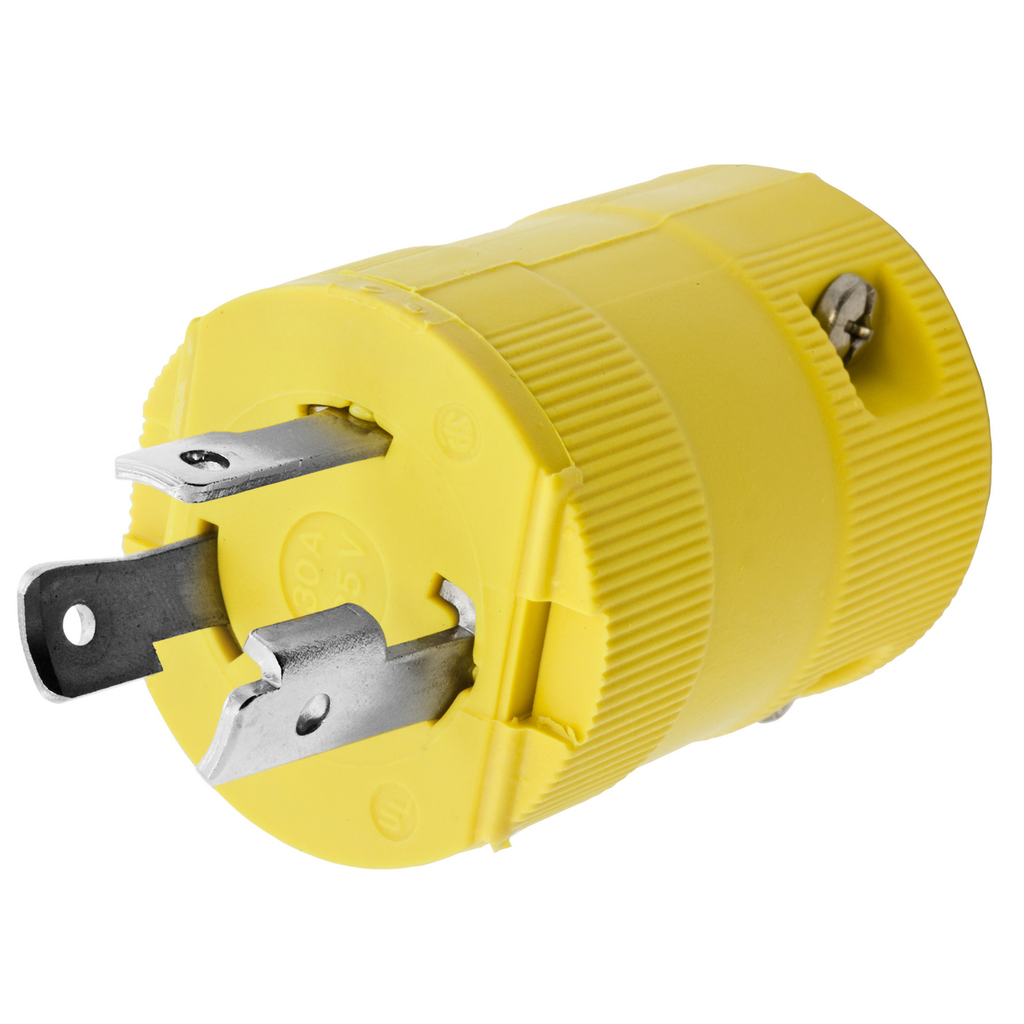

Hubbell HBL26CM11V Locking VAL Plug, CM, 30A 125V, L5-30P, YL

Manufacturer: Hubbell / Kellems | Catalog # HBL26CM11V | North Coast Part # 116869
$61.18/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Corrosion Resistant Valise® Plug, 30A, 125V AC, 2 Pole, 3 Wire Grounding, NEMA L5-30P, Corrosion resistant, Yellow nylon

Technical Information

Amperage
30 Amp
Applications
Power Connection
Conductor Size
10-8 AWG
Cord Type
Portable
Current
30 Amp
Horsepower
2 hp
Material
Nylon
Mounting Type
Cord
NEMA
L5-30P
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Screw Material
#8-32 Brass
Size
2.5 in x 1.78 in x 1.78 in
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
TC Connection
Terminal Screws
Type
Male
Voltage
125 Volt
Wattage
3750 Watt
Wire Size
18-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Valise®

General Product Info

12-Digit UPC
783585808215
Color
Yellow
Environmental Conditions
Corrosion-Resistant
GTiN
00783585808215
Housing Material
Yellow Nylon
Product UPC
78358580821
Weight
0.20 lb

Dimensions

Height
1.78 Inch
Length
2-1/2 Inch
Width
1.78 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • Powerful cord grip prevents conductor slippage and strain on wiring terminals
  • Totally insulated impact and crush resistant nylon body

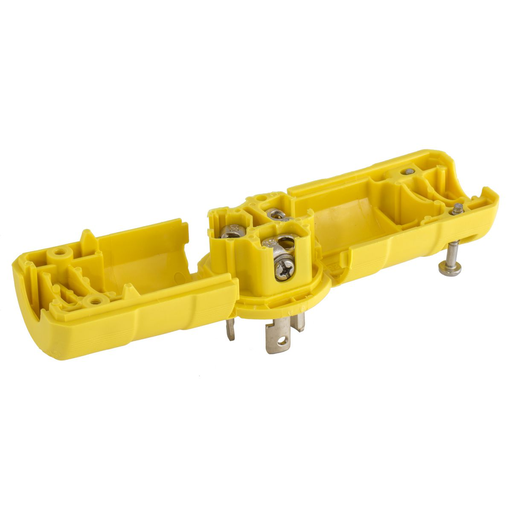

  • Unique patented corrosion resistant clamp type terminals provide a superior electrical connection by bundling the conductor strands when clamps are tightened
  • Corrosion Resistant
