3M FP2.000BK100'L FP 2 BK SPL 30020

Manufacturer: 3M | Catalog # 7100025150 | North Coast Part # 1170027
$5.60/ea
ea
Order in multiples of 200 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page

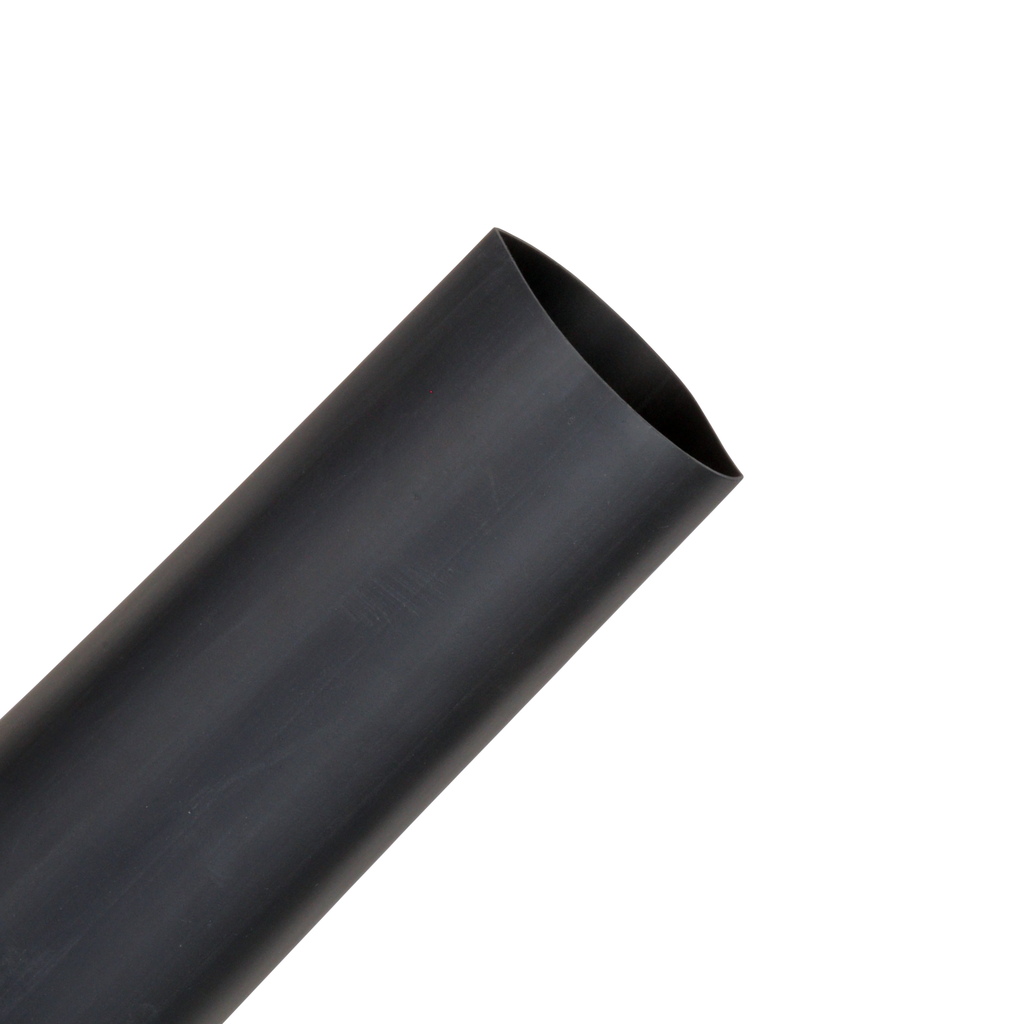

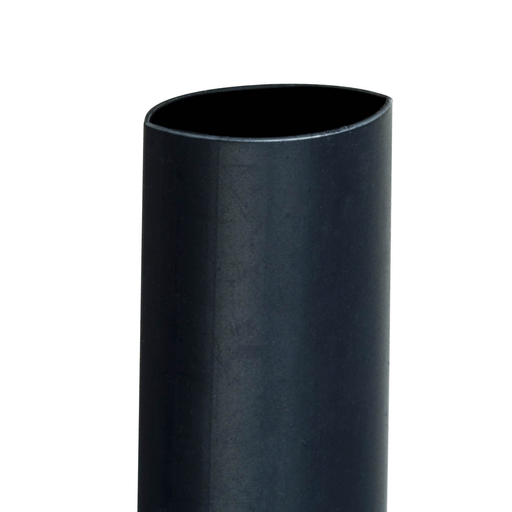

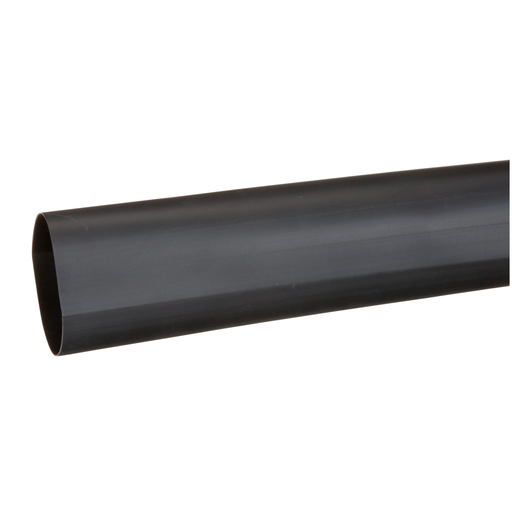

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Technical Information

Dielectric Strength
900 V/mil
Material
Polyolefin
Max Operating Temperature
135.0 degrees C
Operating Temperature
-55 degrees C
Shrink Ratio
2 to 1
Standard
ANATEL,CA Energy Commission Title 24,COFETEL,CUL,FCC,IC,SUTEL
Tensile Strength
2400 lb/in
Type
Single Key Access

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
054007085171
Color
Black
GTiN
00054007085171
Product Form
Tube
Product UPC
05400708517

Dimensions

Inside Diameter
1
Length
100 Foot
Outside Diameter
2 in
Overall Length
100.0 ft
Thickness
0.045

Certifications and Compliance

Country of Origin
USA
Features

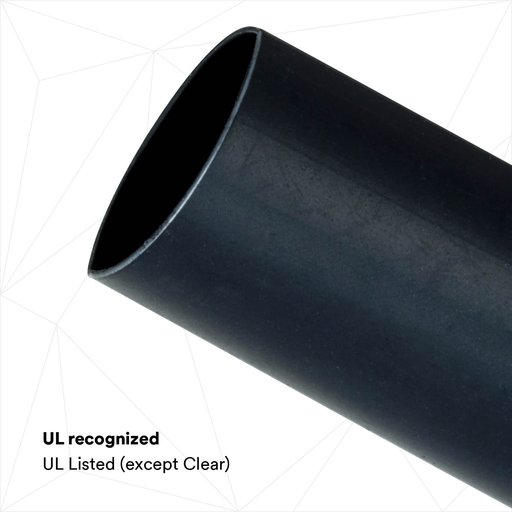

  • UL RECOGNIZED: UL Listed (except Clear)
  • CERTIFIED: CSA Certified
  • MULTIPLE COLORS AVAILABLE: Tubing is available in blue, green, red, white and yellow
  • FLAMMABILITY: Most colors are self-extinguishing and meet UL 224 All-Tubing Flame Test (Except Clear)
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
