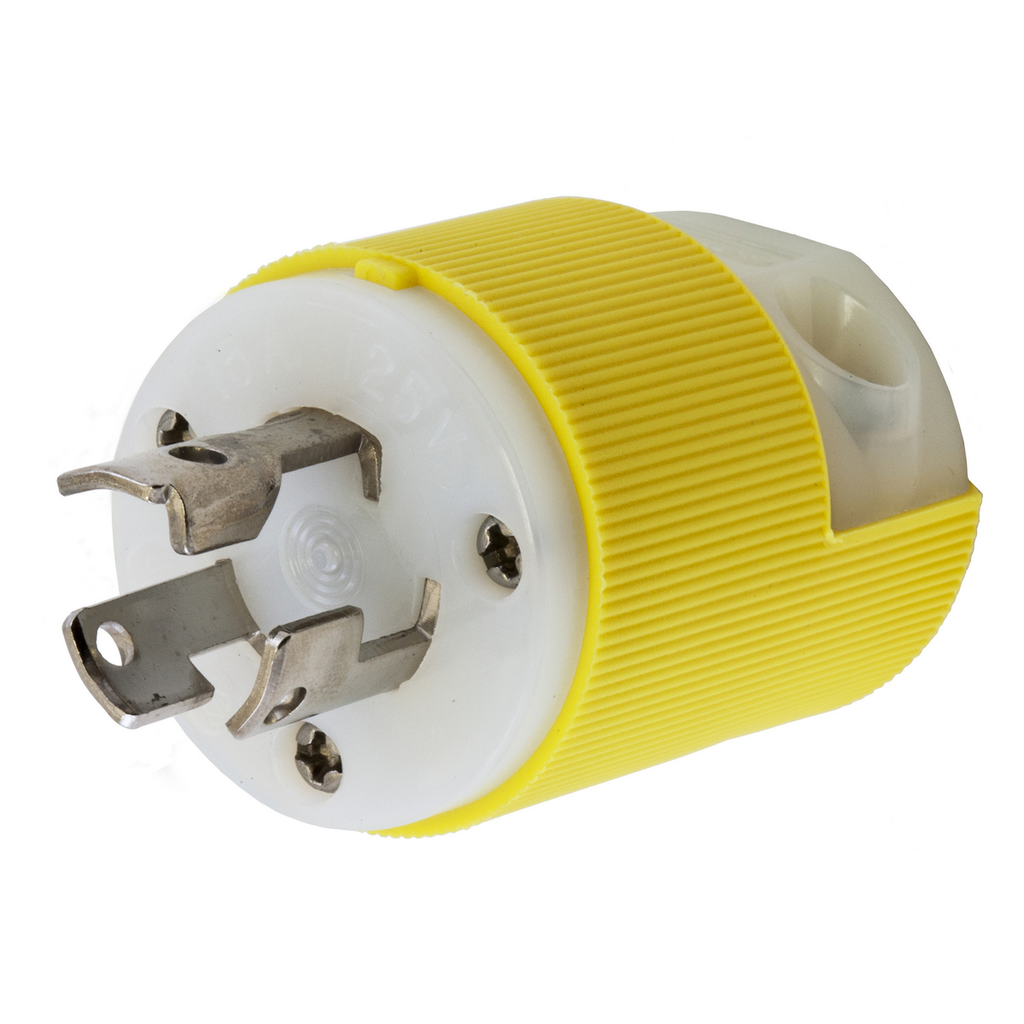

Product image for Hubbell HBL47CM20C 15 Amp 125 Volt NEMA L5-15P Yellow Locking Plug
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Hubbell HBL47CM20C 15 Amp 125 Volt NEMA L5-15P Yellow Locking Plug

Manufacturer: Hubbell / Kellems | Catalog # HBL47CM20C | North Coast Part # 117412
$42.19/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy

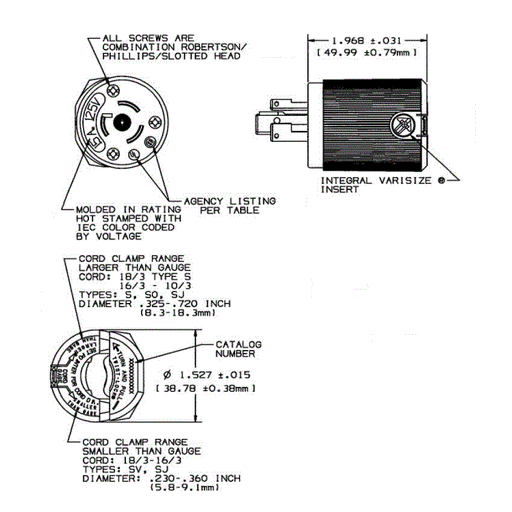

Specification Sheet Product Catalog Page
Locking Devices, Twist-Lock®, Marine Grade, Male Insulgrip® Plug, 15A 125V, 2-Pole 3-Wire Grounding, NEMA L5-15P, Screw Terminal, Corrosion Resistant, Yellow.

Technical Information

Amperage
15 Amp
Applications
Power Connection
Conductor Size
14-12 AWG
Cord Type
Portable
Current
15 Amp
Grade
Marine
Horsepower
0.5 hp
Material
Nylon
Mounting Type
Cord
NEMA

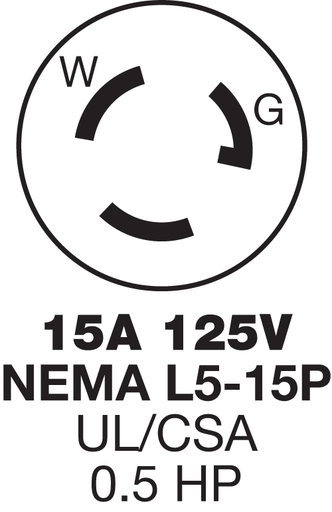

L5-15P
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
1.53 in x 1.53 in x 1.97 in
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
TC Connection
Terminal Screws
Type
Male
Voltage
125 Volt
Wattage
1875 Watt
Wire Count
3
Wire Size
18-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585160504
Color
White,Yellow
Environmental Conditions
Corrosion-Resistant
GTiN
00783585160504
Product UPC
78358516050
Weight
0.05 lb

Dimensions

Height
1.97 Inch
Length
1.53 Inch
Width
1.53 in

Certifications and Compliance

Country of Origin
USA
Features
  • Individually molded face for each blade configuration
  • Roomy wiring chamber provides ample space for wiring
  • Ribbed nylon housing provides a secure grip thats impact and chemical resistant
  • Corrosion Resistant
